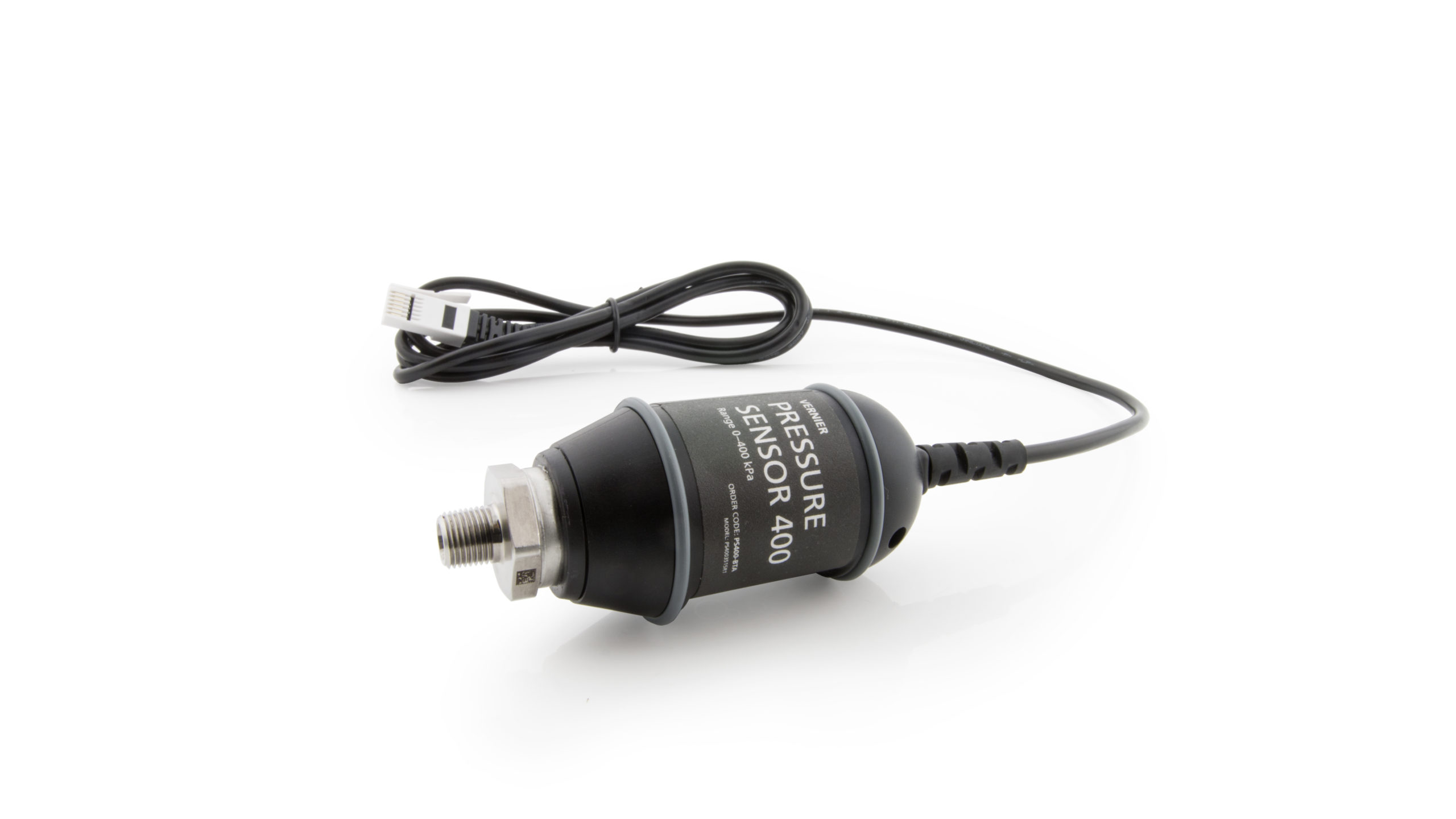

Pressure Sensor 400

The Pressure Sensor 400 will measure absolute pressures from 0 to 400 kPa. The sensor also operates with excellent accuracy over a wide temperature range. The robust metal fittings allow for a tight, leakproof seal to your reaction apparatus. An accessories kit is included with the sensor.

SKU: PS400-BTA Categories: ,

$283.00

The Pressure Sensor 400 is the optimal sensor for conducting physical and analytical chemistry experiments, such as approximating the adiabatic expansion of a gas, Charles’ law experiments, and ideal gas law investigations. It measures absolute pressures from 0 to 400 kPa and operates with excellent accuracy over a wide temperature range. The robust metal fittings allow for a tight, leakproof seal to your reaction apparatus.

An accessories kit is included with the sensor. This kit includes

  • Double-barb brass connector to fit flexible tubing
  • Nickel plated brass push-to-connect Connector to fit more rigid tubing
  • Two-foot section of nylon tubing
  • Two-foot section of plastic tubing
  • Tightening wrenches and plumber’s tape to ensure a tight seal

Range: 0–400 kPa
Sensing element: Honeywell PX2 Series
Accuracy using factory calibration: ±2 kPa
Accuracy using custom calibration: ±1 kPa (1 point calibration at atmosphere)
Temperature range: –40°C to 125°C
Max pressure without damage: 800 kPa

Vernier Pressure Sensor 400
Accessories kitDouble-barb brass connector to fit flexible tubing
Nickel plated brass push-to-connect Connector to fit more rigid tubing
Two-foot section of nylon tubing
Two-foot section of plastic tubing
Tightening wrenches and plumber’s tape to ensure a tight seal

User Manual: https://www.vernier.com/manuals/ps400-bta/
Warranty: 5-year limited warranty
FAQ: https://www.vernier.com/til/3478/
