CO2 Gas Sensor

The CO2 Gas Sensor measures gaseous carbon dioxide in two ranges–0 to 10,000 ppm and 0 to 100,000 ppm.

SKU: CO2-BTA Category:

$537.00

Due to recent changes in global trade policy, our products are being impacted by tariffs. This means a surcharge of 5% will be applied to orders received starting May 12th, with the exception of software and books. If the tariffs are reduced or removed in the future, we’ll adjust our pricing as quickly as possible. Learn More

Response time: 95% of full-scale reading in 120 seconds
Warm-up time: 90 seconds
Pressure effect: 0.19% of reading/mm of Hg from standard pressure
Output signal range: 0-4.0 V
Gas sampling mode: diffusion
Normal operating temperature range: 25°C (±5°C)
Operating humidity range: 5–95% (non-condensing)
Storage temperature range: –40 to 65°C
Measurement Range:Low range: 0 to 10,000 ppm CO2
High range: 0 to 100,000 ppm CO2

Typical Accuracy (at standard pressure, 1 atm):Low range:0 to 1,000 ppm: ±100 ppm
1,000 to 10,000 ppm: ±10% of reading

High range:0 to 1,000 ppm: ±200 ppm
1,000 to 100,000 ppm: ±20% of reading

Resolution:0 to 10,000 ppm CO2: 3ppm
0 to 100,000 ppm CO2: 30ppm

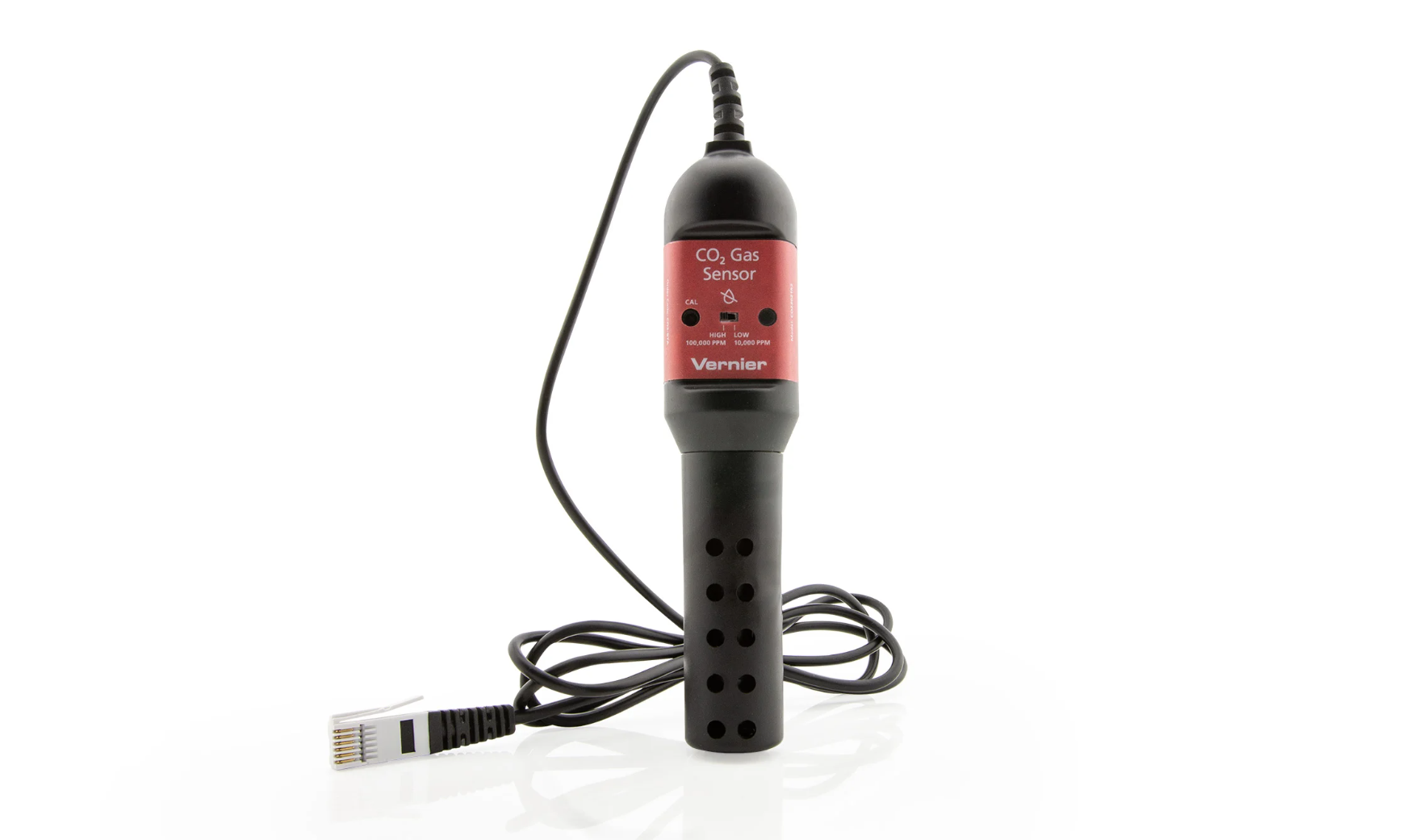

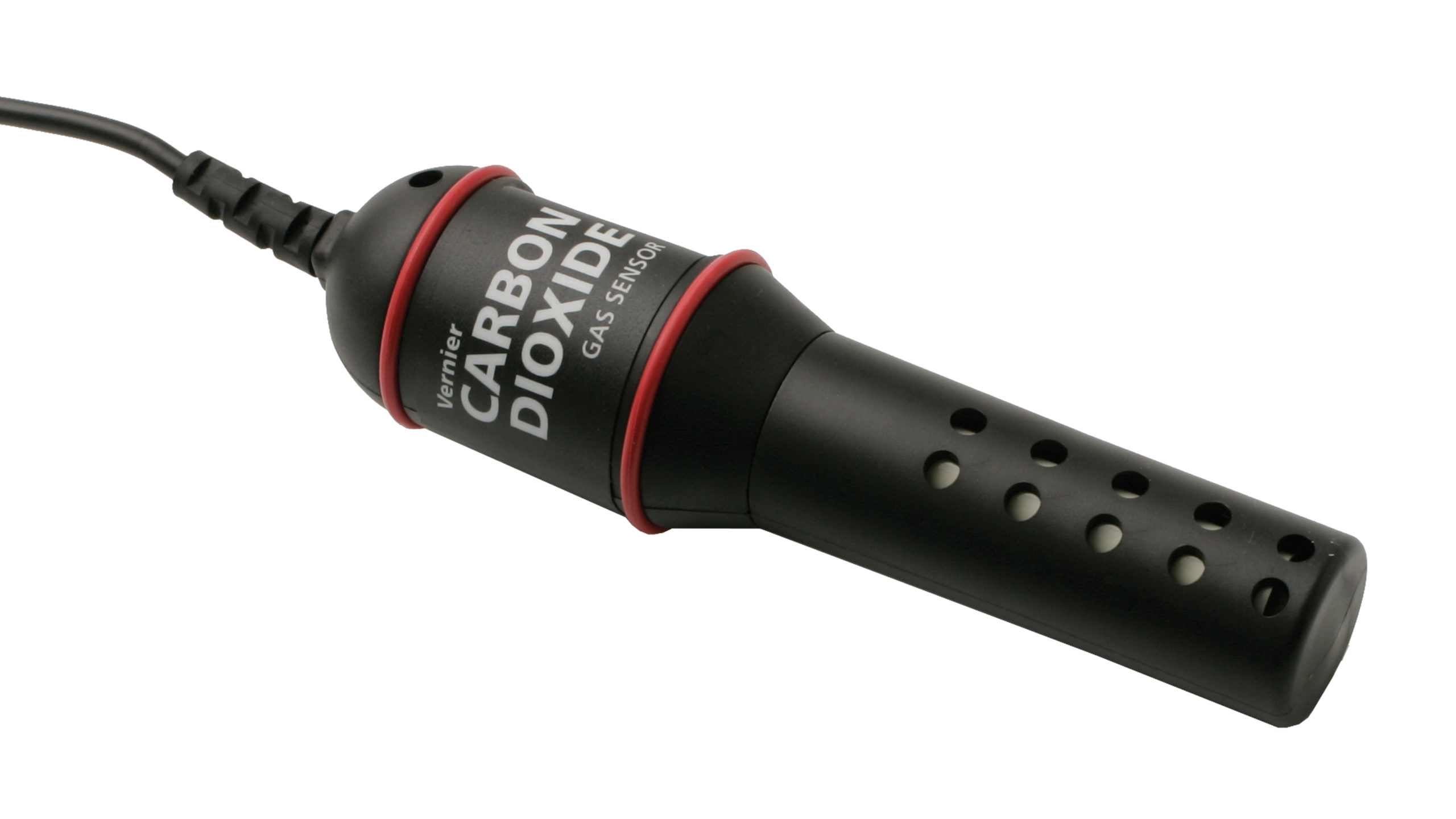

Vernier CO2 Gas Sensor
250 mL gas sampling bottle (Nalgene bottle with lid)

250 mL Nalgene Bottle w/Lid (CO2-BTL)
BioChamber 2000 (BC-2000)
BioChamber 250 (BC-250)

User Manual: https://www.vernier.com/manuals/co2-bta/
Warranty: 5-year limited warranty
FAQ: https://www.vernier.com/til/1366/
