Polarimeter (Chemical)
The Chemical Polarimeter is a device used for measuring the rotation of plane-polarized light caused by optically active substances such as organic, inorganic, or biological compounds.
$926.00
Due to recent changes in global trade policy, our products are being impacted by tariffs. This means a surcharge of 5% will be applied to orders received starting May 12th, with the exception of software and books. If the tariffs are reduced or removed in the future, we’ll adjust our pricing as quickly as possible. Learn More
Education Levels
Subjects
Product Families

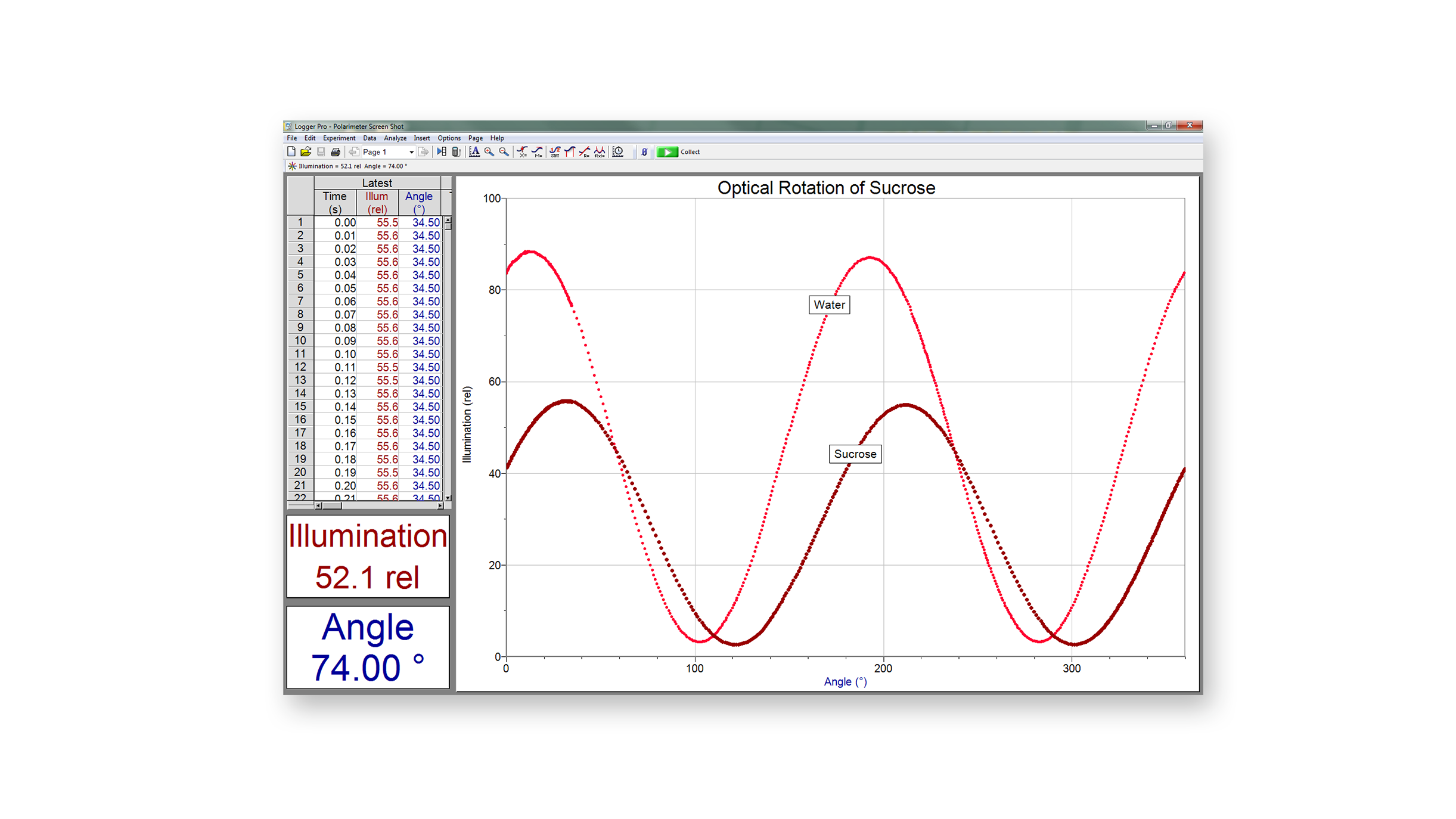

The Polarimeter can be used to measure chiral properties of optically active samples without chemically modifying or destroying the sample. This is a vertical polarimeter that uses a 589 nm LED, a fixed polarizer, and a manually rotated polarizer to detect changes in rotation of plane-polarized light in the presence of an optically active compound. Used with Vernier technology, students no longer have to determine the optical maximum with their eye but have a graph that shows a clear change in the light’s polarization.
WARNING: This product can expose you to chemicals, including chromium, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, see www.P65Warnings.ca.gov
Encoder Resolution: 0.25°
Accuracy (optical rotation measurements): ±1°
Sensitivity: typically up to OD 2
Optical Encoder: Bidirectional, quadrature encoder, 360 cycle per revolution
Light Source: LED
Wavelength (nominal): 589 nm
Vernier Chemical Polarimeter
One Chemical Polarimeter Sample Cell
Chemical Polarimeter Accessory Cells (CELLS-POL)
User Manual: https://www.vernier.com/manuals/chem-pol/
Warranty: 5-year limited warranty (consumables excluded)
FAQ: https://www.vernier.com/til/2591/
