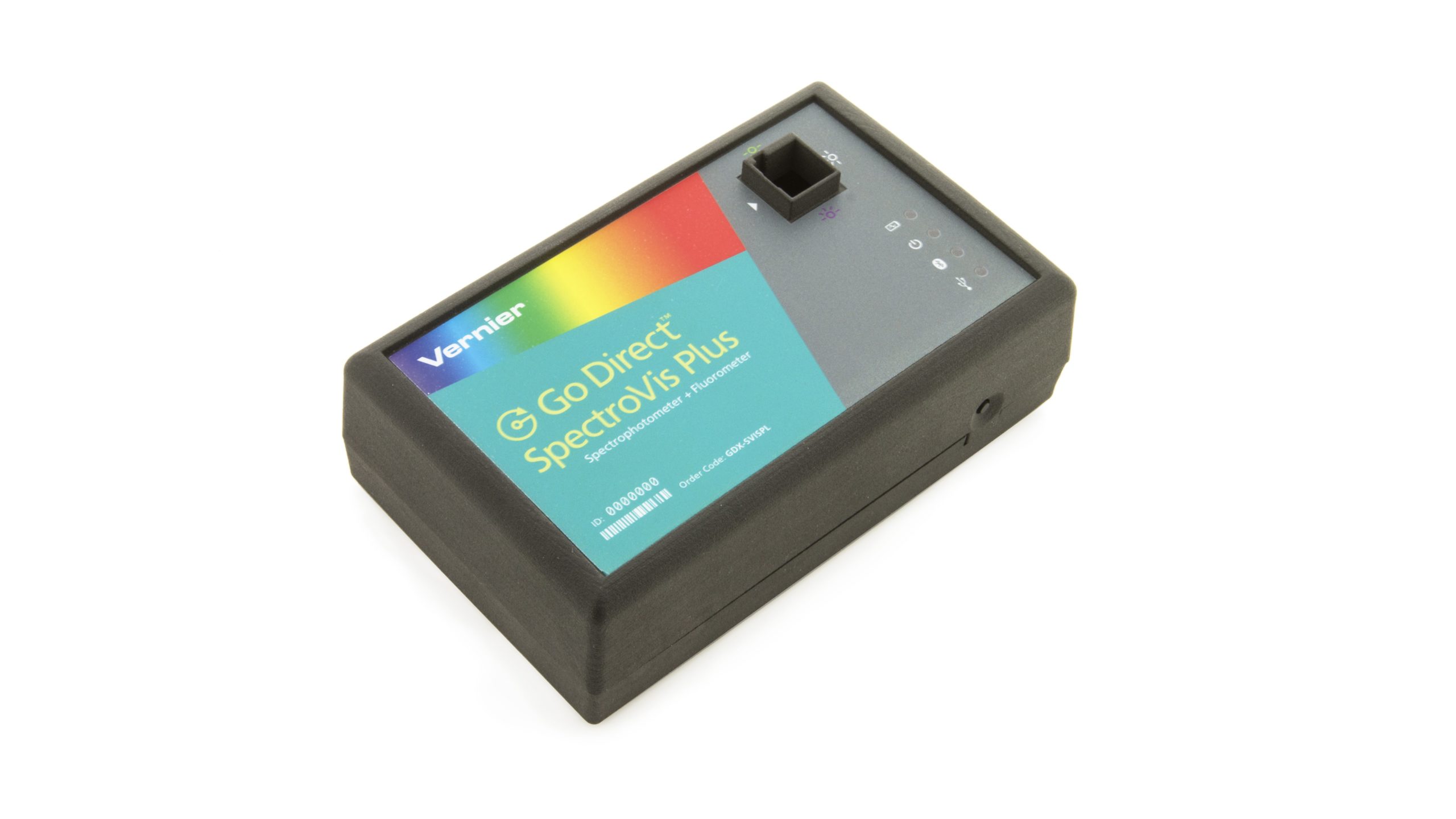

Go Direct® SpectroVis® Plus Spectrophotometer

The Go Direct SpectroVis Plus Spectrophotometer quickly measures a full wavelength spectrum. It connects via Bluetooth® wireless technology or via USB to your device.

SKU: GDX-SVISPL Categories: , ,

$659.00

Introduce your students to spectroscopy with the affordable Go Direct SpectroVis Plus Spectrophotometer. Capable of connecting wirelessly or by USB, this device can easily collect a full wavelength spectrum (absorbance, percent transmission, or intensity) in less than one second. Once the peak wavelength is determined, you can establish the concentration of a solution (Beer’s law) or monitor rates of reactions. A low light path allows the Go Direct SpectroVis Plus Spectrophotometer to be used for microscale labs and biochemistry applications with micro and semi-micro cuvettes. The Go Direct SpectroVis Plus Spectrophotometer can be used in a variety spectroscopy experiments:

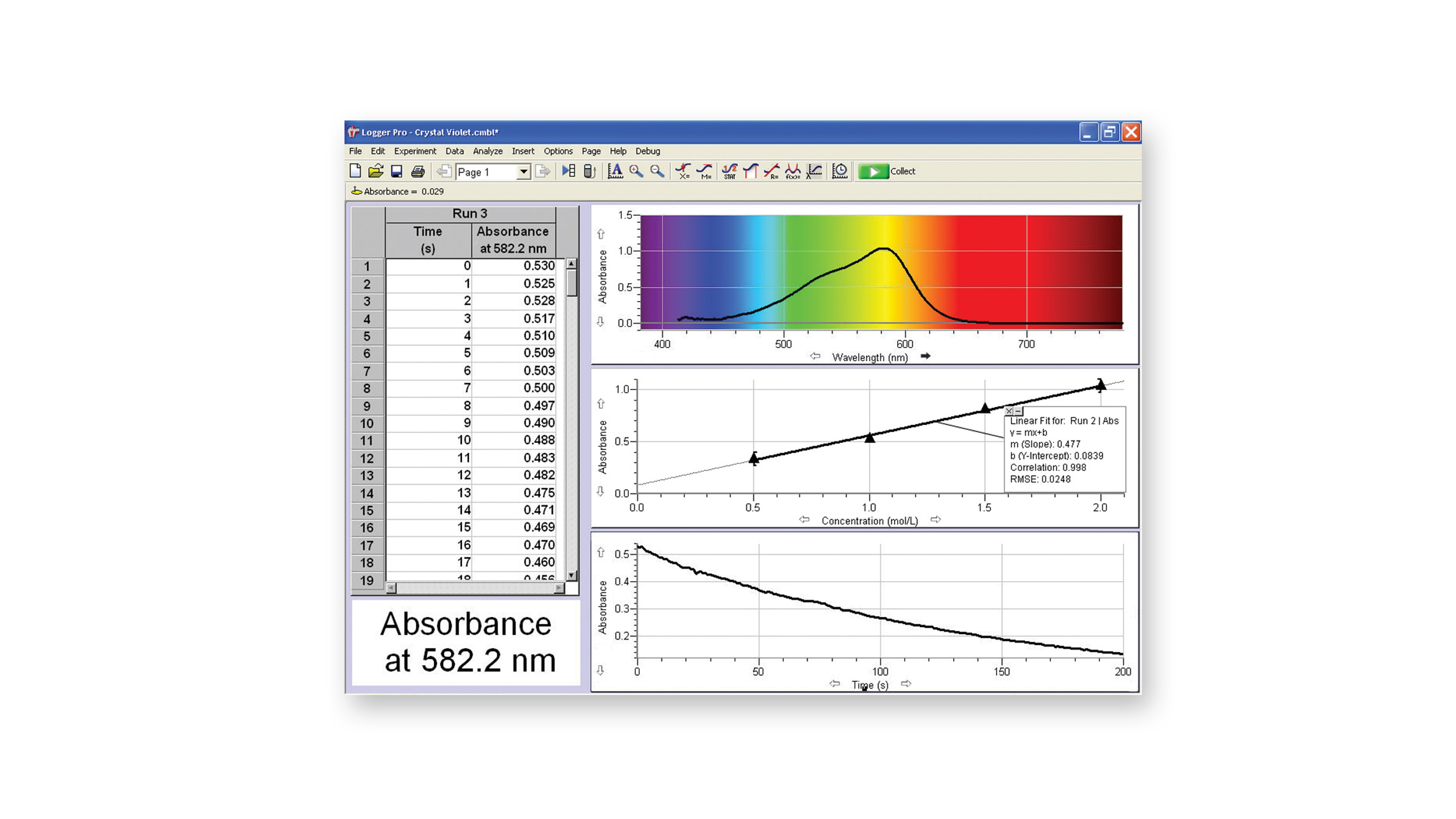

  • Determine peak wavelength to collect data on solution concentration for studies of Beer’s law or to monitor rates of reaction.

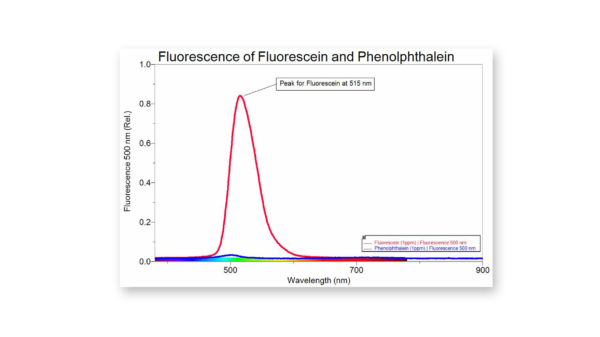

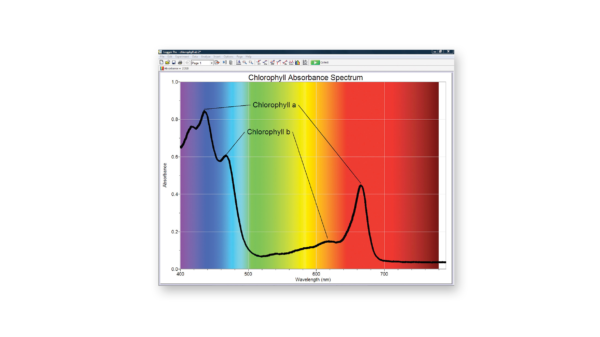

  • Collect a full wavelength spectrum to measure absorbance, percent transmittance, fluorescence (at 405 nm or 500 nm excitation), or emissions.
  • Conduct enzyme kinetics experiments.
  • Engage in equilibrium studies of absorbance vs. time or absorbance vs. concentration.
  • Perform colorimetric or fluorescent bioassays. Use the Vernier Fluorescence/UV-VIS Spectrophotometer for quantitative fluorescence analysis.

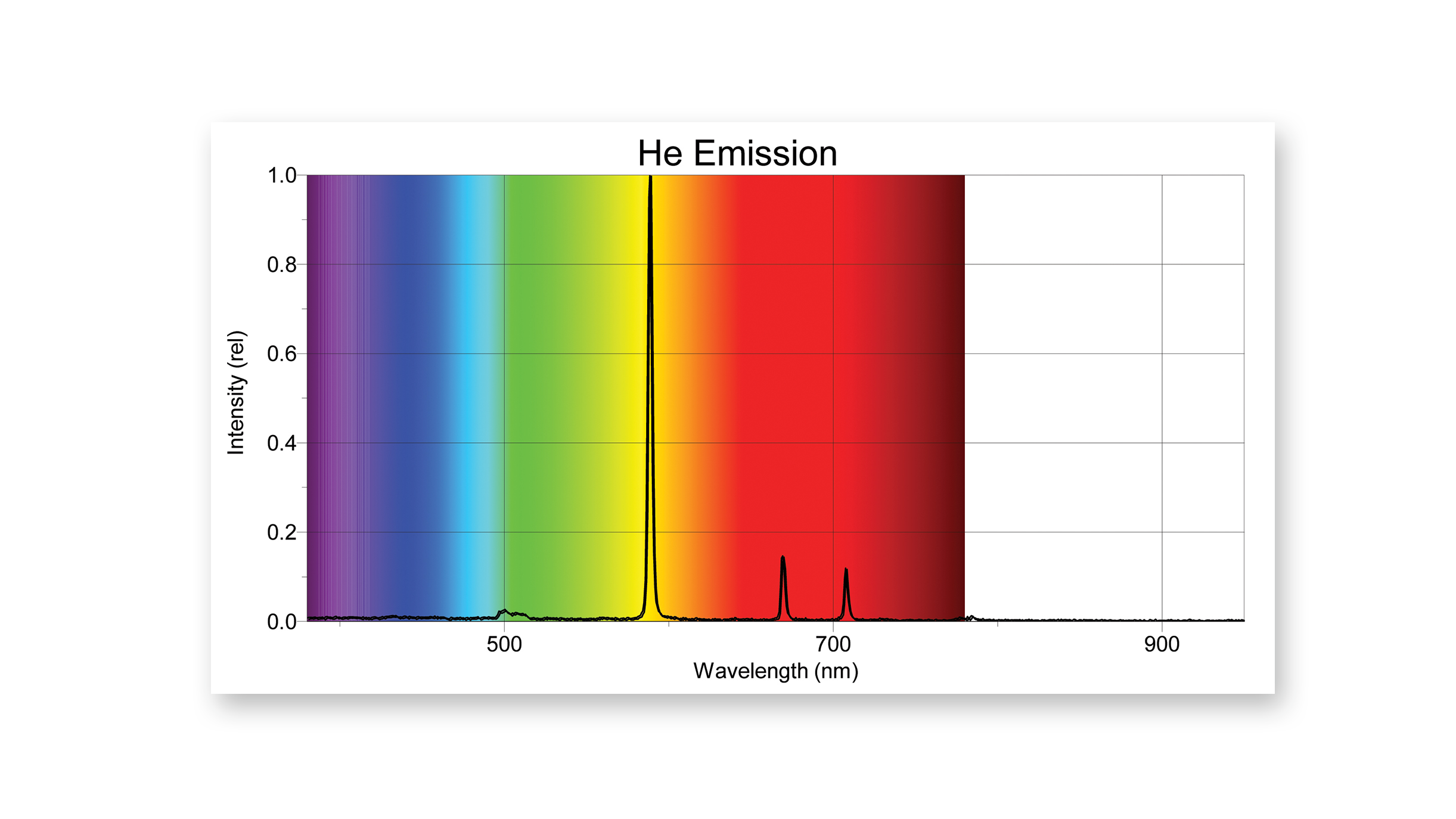

  • Use the Spectrophotometer Optical Fiber to measure emissions from flame tests or other light sources. For more detailed emissions analysis, consider the Vernier Emissions Spectrometer.

How Go Direct SpectroVis Plus Works

The Go Direct SpectroVis Plus Spectrophotometer employs an LED and tungsten bulb to transmit light through a high-quality diffraction grating. The diffracted light is sorted and collected by the linear CCD array detector.

Linear CCD array detector diagram

Spectroscopy with Go Direct SpectroVis Plus

To use the Go Direct SpectroVis Plus Spectrophotometer, download our free Spectral Analysis app. The app is compatible with computers, Chromebooks, and mobile devices. Students may also connect to LabQuest 3 or to a computer with Logger Pro to perform analysis.

  • Wavelength Range: 380 nm–950 nm
  • Support for fluorescence: Two excitation sources centered at 405 nm and 500 nm
  • Reported Wavelength Interval: ~1 nm between reported values (collects 570 values)
  • Optical resolution (FWHM): 5.0 nm
  • Wavelength accuracy: ± 4.0 nm
  • Photometric accuracy: ± 0.10 A.U.
  • Dimensions: 15 cm x 9 cm x 4 cm
  • Light Sources: Incandescent white bulb, approximately 8000 hour lifetime, one-step calibration. LED-based, approximately 100,000 hour lifetime. No external power is required.
  • Typical scan time: ~2 s
  • Connections:
    • Wireless: Bluetooth
    • Wired: USB

Go Direct SpectroVis Plus Spectrophotometer
15 plastic cuvettes and lids
Mini USB Cable
Power supply

Cuvette Rack (CUV-RACK)
Mini USB-C Cable (CB-USB-C-MINI)
Plastic Cuvettes (UV-VIS) (CUV-UV)
Plastic Cuvettes (Visible Range) (CUV)
Vernier Spectrophotometer Optical Fiber (VSP-FIBER)

Mini USB Cable (CB-USB-MINI)
LabQuest® 2, LabQuest Stream™, and Go Direct SpectroVis Plus Battery (LQ2-BAT)
LabQuest Power Supply (LQ-PS)

User Manual: https://www.vernier.com/manuals/gdx-svispl/
Warranty: 5-year limited warranty (1 year on battery, 3 years on lamp, none on consumables)
FAQ: https://www.vernier.com/til/3847/
