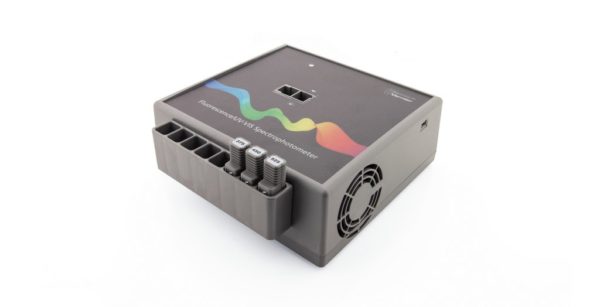

Vernier Fluorescence/UV-VIS Spectrophotometer

The Fluorescence/UV-VIS Spectrophotometer measures the absorbance and fluorescence spectra of various chemical and biochemical compounds.



This product has been replaced by the
Go Direct® Fluorescence/UV-VIS Spectrophotometer

SKU: VSP-FUV Categories: ,

$4,410.00

Out of stock

Our affordable Fluorescence/UV-VIS Spectrophotometer is designed specifically for upper-level chemistry courses. We’ve combined the functionality of a fluorometer with the power of a UV/VIS spectrophotometer to allow students to easily and accurately conduct numerous fluorescence experiments with compounds such as quinine sulfate, DAPI, GFP, and tryptophan. Exchangeable LEDs ensure you get the exact excitation wavelength needed for your experiment. To conduct emission spectra experiments simply attach the Vernier Spectrophotometer Optical Fiber.

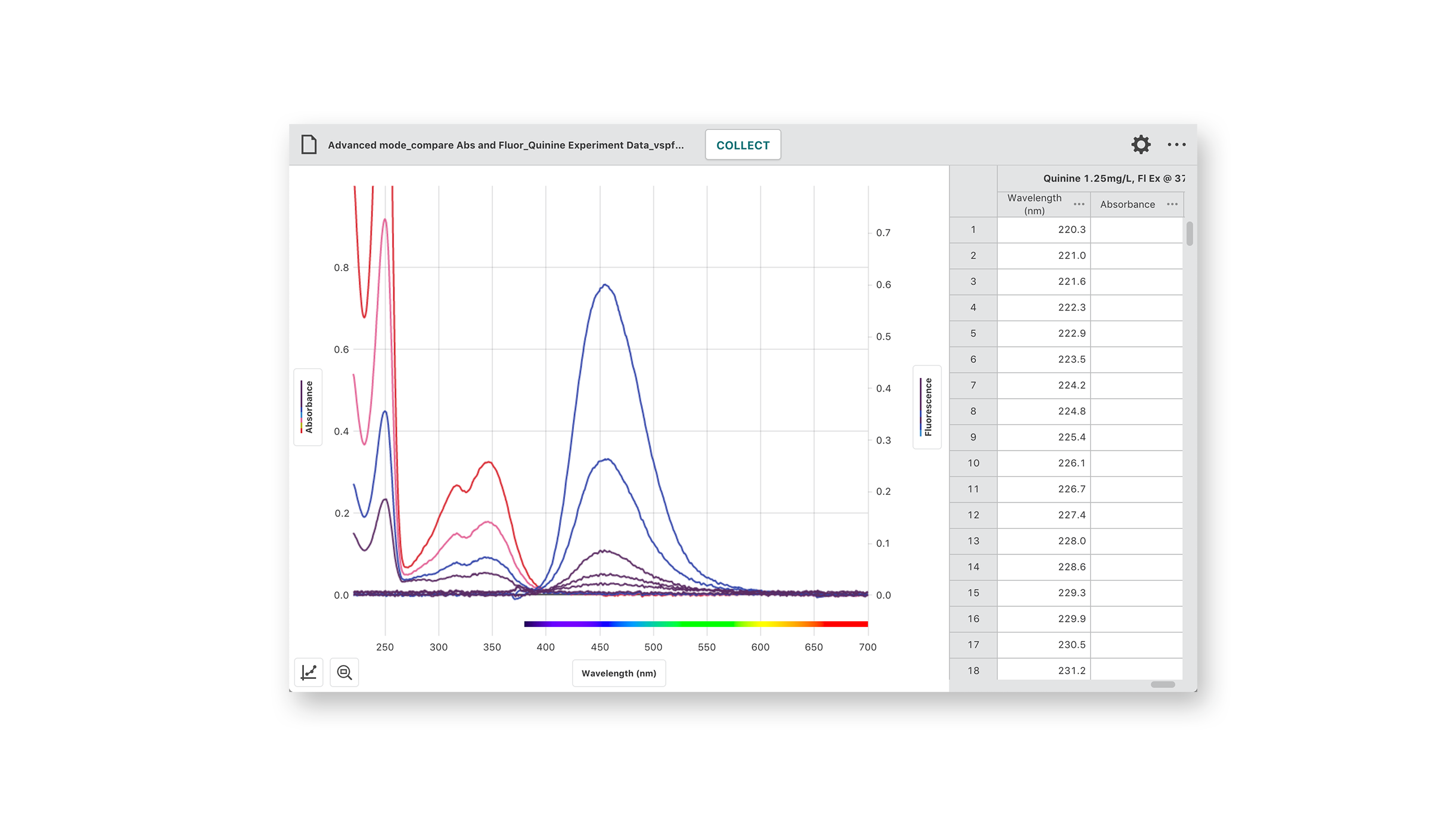

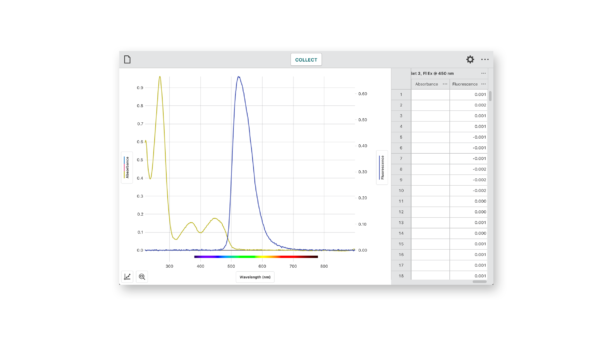

The Fluorescence/UV-VIS Spectrophotometer connects directly to a computer or LabQuest. Data can be collected and analyzed using our Logger Pro software or free Spectral Analysis software, so there is no need to train students on yet another instrument software.

Detection modes: Absorbance and Fluorescence
Dimensions: 18.5 cm × 17.0 cm × 7.0 cm
Power supply: AC adapter (included)
Power consumption: 3 A start-up, 500 mA continuous
Absorbance light source: deuterium (UV) and incandescent (VIS)
Emission light source: Exchangeable LED (ships with 375 nm, 450 nm, 525 nm)
Detector: Linear CCD
Wavelength range: 220–850 nm
Wavelength reporting interval: ~ 1 nm
Optical resolution: 3.0 nm (as determined with 486 nm hydrogen emission spectral line FWHM)
Wavelength accuracy: ± 2.0 nm (as determined with holmium oxide NIST standard)
Absorbance photometric accuracy: ± 5.0% (as determined with potassium dichromate NIST standards)
Absorbance photometric range (for best accuracy): 0.1–1.0
Typical scan time: ~ 2 s
Sample format: 10 mm × 10 mm cuvette (UV fluorescence cuvette included)
Fluorescence emission detection limit: 1 mg/L quinine sulfate dihydrate in 0.1 M H2SO4

Vernier Fluorescence/UV-VIS Spectrophotometer with LED holder
Three exchangeable LED cartridges: 375 nm, 450 nm, and 525 nm
Starna UV fluorescence cuvette
AC power supply
USB cable
Carrying case

Fluorescence LED Cartridges – 280 nm (VSP-280)
Fluorescence LED Cartridges – 350 nm (VSP-350)
Fluorescence LED Cartridges – 400 nm (VSP-400)
Fluorescence LED Cartridges – 500 nm (VSP-500)
Fluorescence LED Cartridges – 525 nm (VSP-525)
Mini USB-C Cable (CB-USB-C-MINI)
Vernier Spectrophotometer Optical Fiber (VSP-FIBER)

Fluorescence/UV Quartz Cuvette (CUV-QUARTZ-FUV)
Quartz Cuvettes (CUV-QUARTZ)
Replacement Power Supply for UV-VIS and Fluorescence/UV-VIS Spectrophotometer (VSP-UV-PS)
Mini USB Cable (CB-USB-MINI)
Fluorescence LED Cartridges ()

User Manual: https://www.vernier.com/manuals/vsp-fuv/
Warranty: 5-year limited warranty (1 year on lamp, none on consumables)
FAQ: https://www.vernier.com/til/3918/
