Charge Sensor

Use the Charge Sensor as an electronic electroscope to obtain quantitative measurements when studying charging by induction, friction, or contact.

SKU: CRG-BTA Category:

$160.00

Due to recent changes in global trade policy, our products are being impacted by tariffs. This means a surcharge of 5% will be applied to orders received starting May 12th, with the exception of software and books. If the tariffs are reduced or removed in the future, we’ll adjust our pricing as quickly as possible. Learn More

Education Levels

Subjects

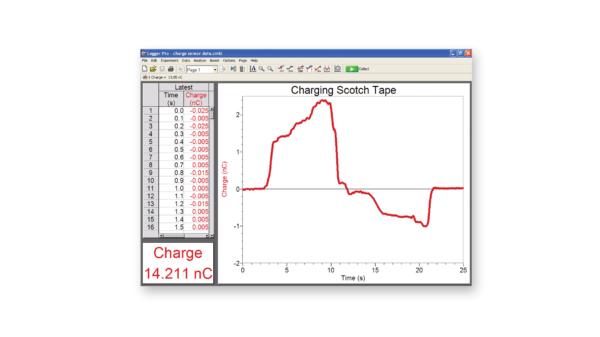

Unlike a traditional electroscope, the Charge Sensor can make quantitative measurements. Numerical measurements improve many electrostatics experiments, such as charging by induction, charging by friction, and charging by contact.

The sensor can also be used to measure charge polarity. An extremely high-impedance voltage sensor with a 0.01μF input capacitor makes these measurements possible. The sensor has two operating ranges and a zeroing switch to discharge the input capacitor.

Ranges:± 2 V (± 20 nC)
± 10 V (± 100 nC)

Maximum input: ± 150 V
Typical bias input current: 0.005 pA
Input capacitance: 0.01 μF
Instrument time constant: 0.1 s

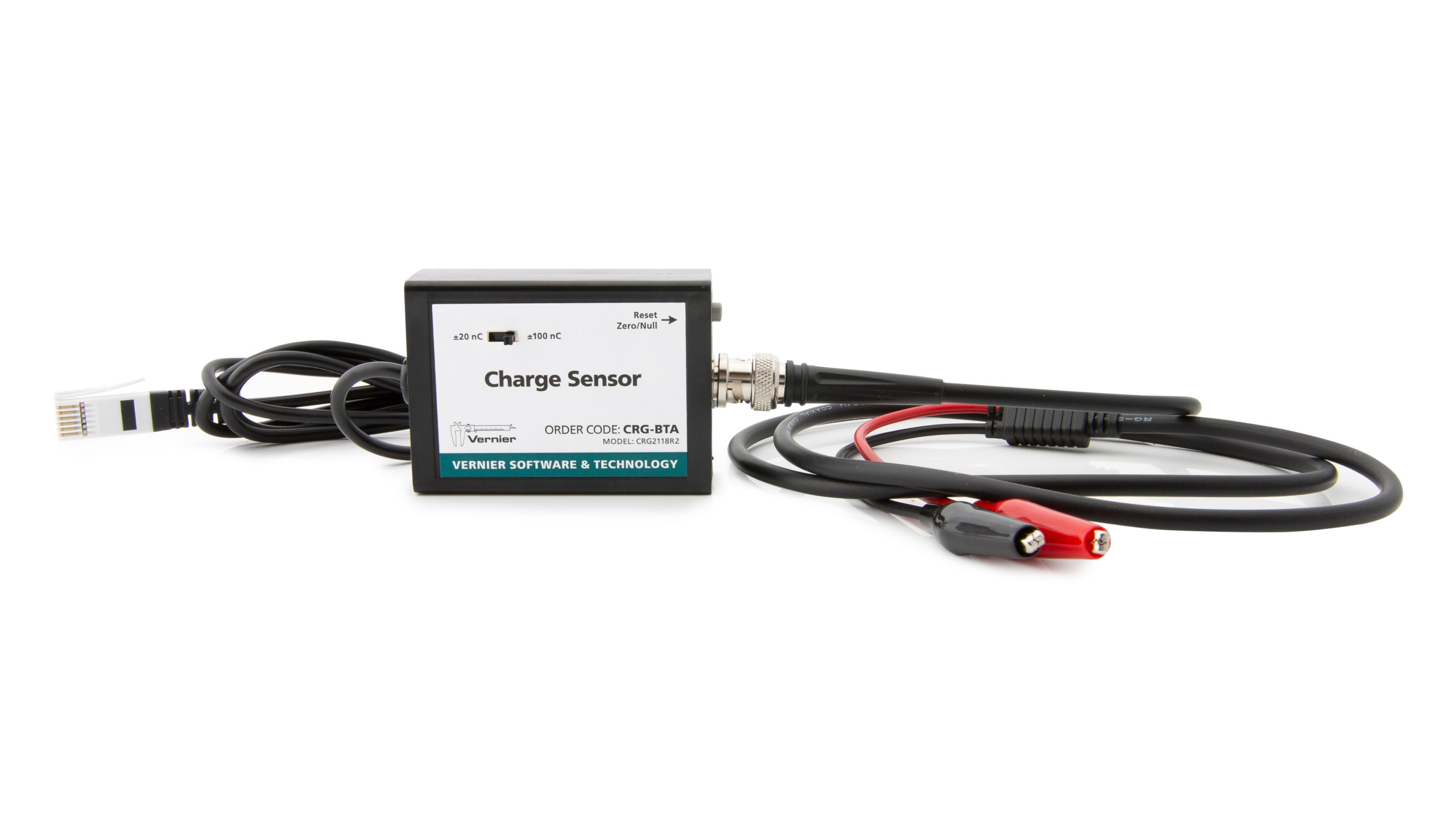

Vernier Charge Sensor
Low-leakage BNC/Alligator Clip Cable

Electrostatic High-Voltage Genecon (HVEK-GEN)
Electrostatics Kit (ESK-CRG)
High-Voltage Electrostatics Kit (HVEK-CRG)

User Manual: https://www.vernier.com/manuals/crg-bta/
Warranty: 5-year limited warranty
FAQ: https://www.vernier.com/til/1427/
