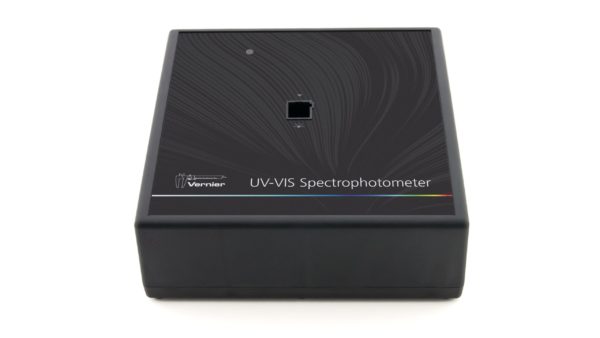

Vernier UV-VIS Spectrophotometer

The Vernier UV-VIS Spectrophotometer is a portable ultraviolet and visible light spectrophotometer for measuring the absorbance spectra of various chemical and biochemical compounds.

SKU: VSP-UV Categories: ,

$3,194.00

The Vernier UV-VIS Spectrophotometer is an easy and accurate instrument ideal for measuring the absorbance spectra of various chemical and biochemical compounds. An optical fiber accessory can be attached to the spectrophotometer for emission spectrum experiments. It has a USB interface allowing it to plug directly into your computer or LabQuest for data collection.

Dimensions: 18.5 cm × 17.0 cm × 7.0 cm
Power Supply: AC adapter (included)
Power Consumption: 3 A start-up, 500 mA continuous
Light Source: deuterium (UV) and incandescent (VIS)
Detector: Linear CCD
Wavelength Range: 220–850 nm
Wavelength Reporting Interval: ~ 1 nm
Optical Resolution: 3.0 nm (as determined with 486 nm hydrogen emission spectral line FWHM)
Wavelength Accuracy: ± 2.0 nm (as determined with holmium oxide NIST standard)
Photometric Accuracy: ± 5.0% (as determined with potassium dichromate NIST standards)
Photometric Range (for best accuracy): 0.1–1.0
Typical Scan Time: ~ 2 s
Operating Temperature: 15–35°C

Vernier UV-VIS Spectrophotometer
AC power supply
Two Starna quartz cuvettes
USB cable
User manual

Cuvette Rack (CUV-RACK)
Mini USB-C Cable (CB-USB-C-MINI)
Plastic Cuvettes (UV-VIS) (CUV-UV)
Quartz Cuvettes (CUV-QUARTZ)
Vernier Spectrophotometer Optical Fiber (VSP-FIBER)

Quartz Cuvettes (CUV-QUARTZ)
Mini USB Cable (CB-USB-MINI)
Replacement Power Supply for UV-VIS and Fluorescence/UV-VIS Spectrophotometer (VSP-UV-PS)

User Manual: https://www.vernier.com/manuals/vsp-uv/
Warranty: 5-year limited warranty (1 year on lamp, none on consumables)
FAQ: https://www.vernier.com/til/3044/
