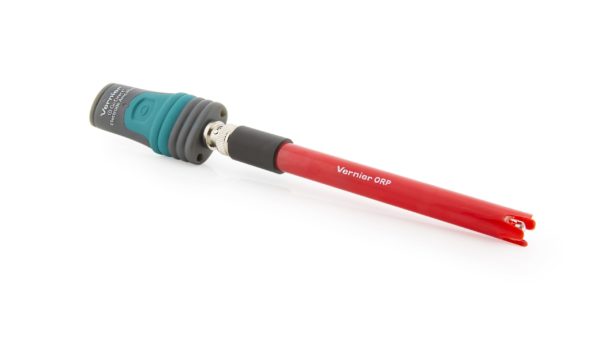

Go Direct® ORP Sensor

The Go Direct ORP (Oxidation-Reduction Potential) Sensor measures the ability of a solution to act as an oxidizing or reducing agent. It connects via Bluetooth® wireless technology or via USB to your device.

SKU: GDX-ORP Categories: , ,

$190.00

Use the Go Direct ORP Sensor to measure the ability of a solution to act as an oxidizing agent and to quantify ion activity. This sensor measures the capacity of a solution to either release or accept electrons from chemical reactions.

This sensor is comprised of an ORP electrode connected to a Go Direct Electrode Amplifier via a BNC connector. This design enables you to use the Go Direct Electrode Amplifier with other Vernier electrodes, such as the pH ElectrodeFlat pH ElectrodeORP Electrode, ISE electrode, or a third-party electrode.

The Go Direct ORP Sensor can be used in a variety of experiments:

  • Determine the equivalence point of an oxidation-reduction titration.
  • Measure the oxidizing ability of chlorine in swimming pools.
  • Investigate the ORP of drinking water.

Rechargeable Battery—Ready When You Are

The robust rechargeable battery offers long battery life and provides always-ready operation when using the sensor wirelessly. Monitor battery life directly from our free Graphical Analysis 4 app or LabQuest 3 App. Should the battery run low, simply connect the sensor to the charging cable and keep on collecting—no interruptions or inconvenience to you or your students.

Wired or Wireless—The Flexibility to Choose

Our Go Direct sensors connect directly to your mobile device, Chromebook, or computer using our free Graphical Analysis 4 app—no additional equipment or software purchases are necessary. Go Direct sensors can be used wired via USB or wirelessly via Bluetooth® wireless technology, allowing you to choose the solution best for your classroom or laboratory.

ORP Electrode
Accuracy with new electrode (mV): ±20 mV
Type: Sealed, gel-filled, epoxy body, Ag/AgCl reference
Storage solution: pH-4/KCl solution (10 g KCl in 100 mL buffer pH-4 solution)
ORP element: 99% pure platinum band sealed on a glass stem
Temperature range:0 to 60°C
12 mm OD
Impedance: ~20 kΩ at 25ºC

Electrode Amplifier
Units: mV
Input range: ±1000 mV
Connections:Wireless: Bluetooth
Wired: USB

Go Direct ORP (includes Go Direct Electrode Amplifier)
Micro USB Cable
pH storage solution bottle with pH Storage Solution

Go Direct® Charge Station (GDX-CRG)
Go Direct® pH BNC Electrode (GDX-PH-BNC)

Micro USB Cable (CB-USB-MICRO)
Go Direct® ORP BNC Electrode (GDX-ORP-BNC)
Go Direct® Electrode Amplifier (GDX-EA)
pH Storage Solution (PH-SS)
Storage Solution Bottles (5) (BTL)
Go Direct® 300 mAh Replacement Battery (GDX-BAT-300)
Micro USB to USB-C Cable (CB-USB-C-MICRO)

User Manual: https://www.vernier.com/manuals/gdx-orp/
Warranty: 5-year limited warranty (1 year on battery)
FAQ: https://www.vernier.com/til/3967/
