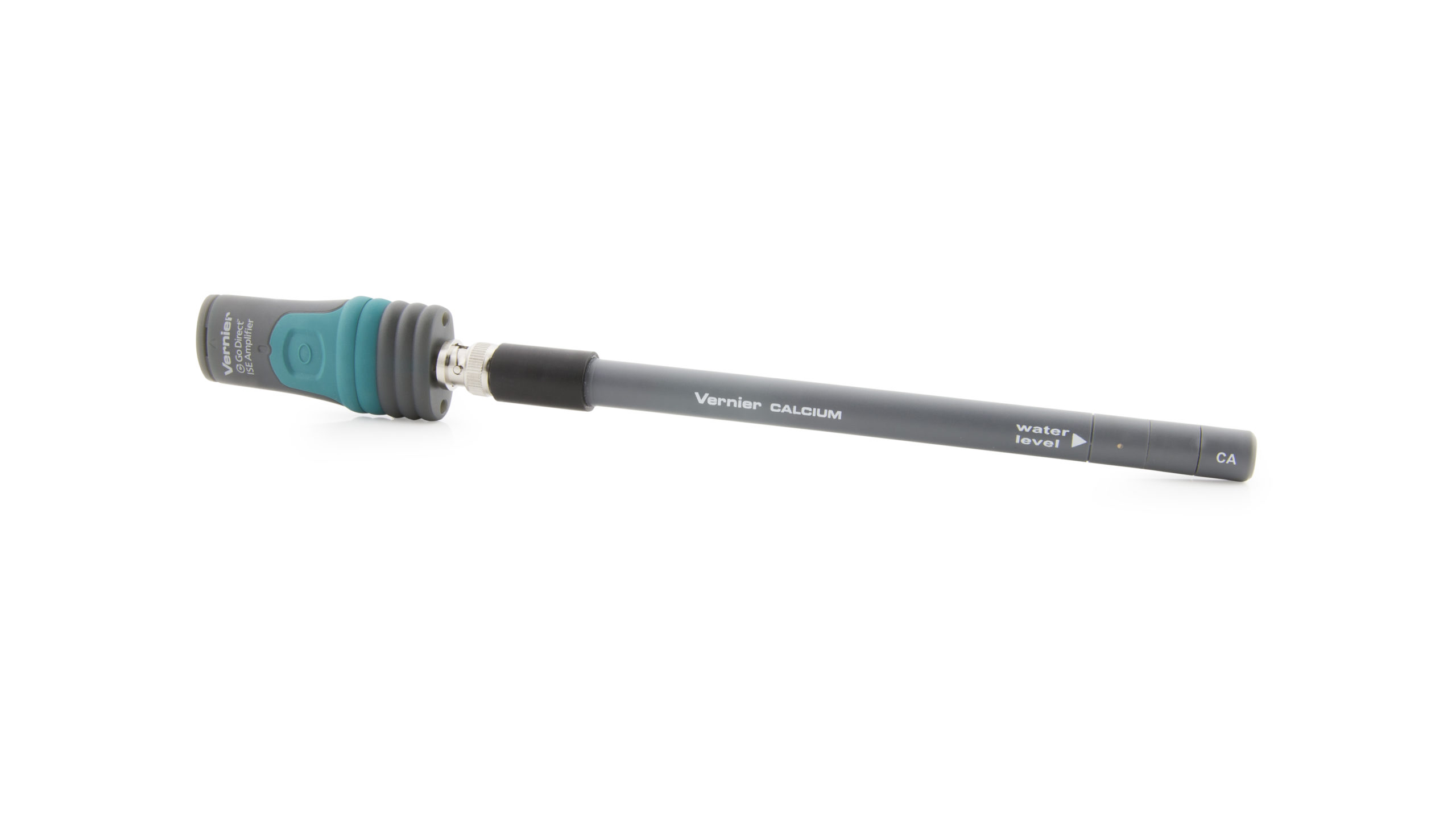

Go Direct® Calcium Ion-Selective Electrode
The Go Direct Calcium Ion-Selective Electrode (ISE) can be used to measure the concentration of calcium (Ca2+) in aqueous samples. It connects via Bluetooth® wireless technology or via USB to your device.
Data from the wireless Go Direct Calcium Ion-Selective Electrode can give a good indication of the hardness of water (as Ca2+). The concentration of calcium is also used as an endpoint indicator in EDTA-Ca/Mg hard water titrations.
The versatile BNC connector allows students to easily replace the electrode when it expires or becomes damaged. You need only replace the electrode and not the entire sensor—lowering your overall equipment costs.
The Go Direct Calcium Ion-Selective Electrode has a combination-style, non-refillable, gel-filled electrode. Like all other PVC ISE membranes, the membrane on the ISE has a limited life expectancy. However, the replaceable module of ISE allows you to simply discard the used membrane module and replace it with a new one.
Rechargeable Battery—Ready When You Are
The robust rechargeable battery offers long battery life and provides always-ready operation when using the sensor wirelessly. Monitor battery life directly from our free Graphical Analysis™ 4 app or LabQuest 3 App. Should the battery run low, simply connect the sensor to the charging cable and keep on collecting—no interruptions or inconvenience to you or your students.
Wired or Wireless—The Flexibility to Choose
Our Go Direct sensors connect directly to your mobile device, Chromebook™, or computer using our free Graphical Analysis™ 4 app—no additional equipment or software purchases are necessary. Go Direct sensors can be used wired via USB or wirelessly via Bluetooth® wireless technology, allowing you to choose the solution best for your classroom or laboratory.
Note: We recommend that you do not purchase ISE replacement modules too far in advance of their expected time of use as degradation occurs while they are stored on the shelf.
Important: Ion-Selective Electrodes require good chemical technique and careful calibration to obtain accurate results; they are not recommended for middle school or elementary students.
Range (mV): ±1000 mV
Range (concentration): 1 to 40,000 mg/L (or ppm)
Accuracy: ±10% of full scale (calibrated 10 to 1000 mg/L)
Interfering ions: Pb2+, Hg2+, Si2+, Cu2+, Ni2+, NH3, Na+, Li+, K+, Ba2+, Zn2+, Mg2+
pH range: 2–8 (no pH compensation)
Temperature range: 0–40°C (no temperature compensation)
Electrode slope: 26 ±2 mV/decade at 25°C
Electrode resistance: 100 MΩ
Minimum sample size: must be submerged 2.8 cm (1.1 in)
Go Direct ISE Amplifier attached to a Go Direct Calcium Ion-Selective Electrode BNC
Micro USB cable
30 mL bottle of High Standard solution with SDS (1000 mg/L Ca2+)
30 mL bottle of Low Standard solution with SDS (10 mg/L Ca2+)
Short-Term ISE Soaking Bottle
Go Direct® Ammonium Ion-Selective Electrode BNC (GDX-NH4-BNC)
Go Direct® Charge Station (GDX-CRG)
Go Direct® Chloride Ion-Selective Electrode BNC (GDX-CL-BNC)
Go Direct® Nitrate Ion-Selective Electrode BNC (GDX-NO3-BNC)
Go Direct® Potassium Ion-Selective Electrode BNC (GDX-K-BNC)
Go Direct® Sensor Clamp (GDX-CLAMP)
Go Direct® 300 mAh Replacement Battery (GDX-BAT-300)
Calcium Replacement Module (CA-MOD)
Go Direct® Ion-Selective Electrode Amplifier (GDX-ISEA)
Micro USB Cable (CB-USB-MICRO)
Electrode Storage Bottles (BTL-ES)
Go Direct® Calcium Ion-Selective Electrode BNC (GDX-CA-BNC)
Standard Ca ISE Solution ()
