Go Direct® Melt Station

The Go Direct Melt Station accurately determines the melting temperature of solid substances. It connects via Bluetooth® wireless technology or via USB to your device.

SKU: GDX-MLT Categories: , ,

$889.00

Teach students the visual detection capillary method of melting point determination with the Go Direct Melt Station. It accurately measures melting temperatures of a solid (up to 260°C), and the real-time graphing provides a unique perspective of the melting process.

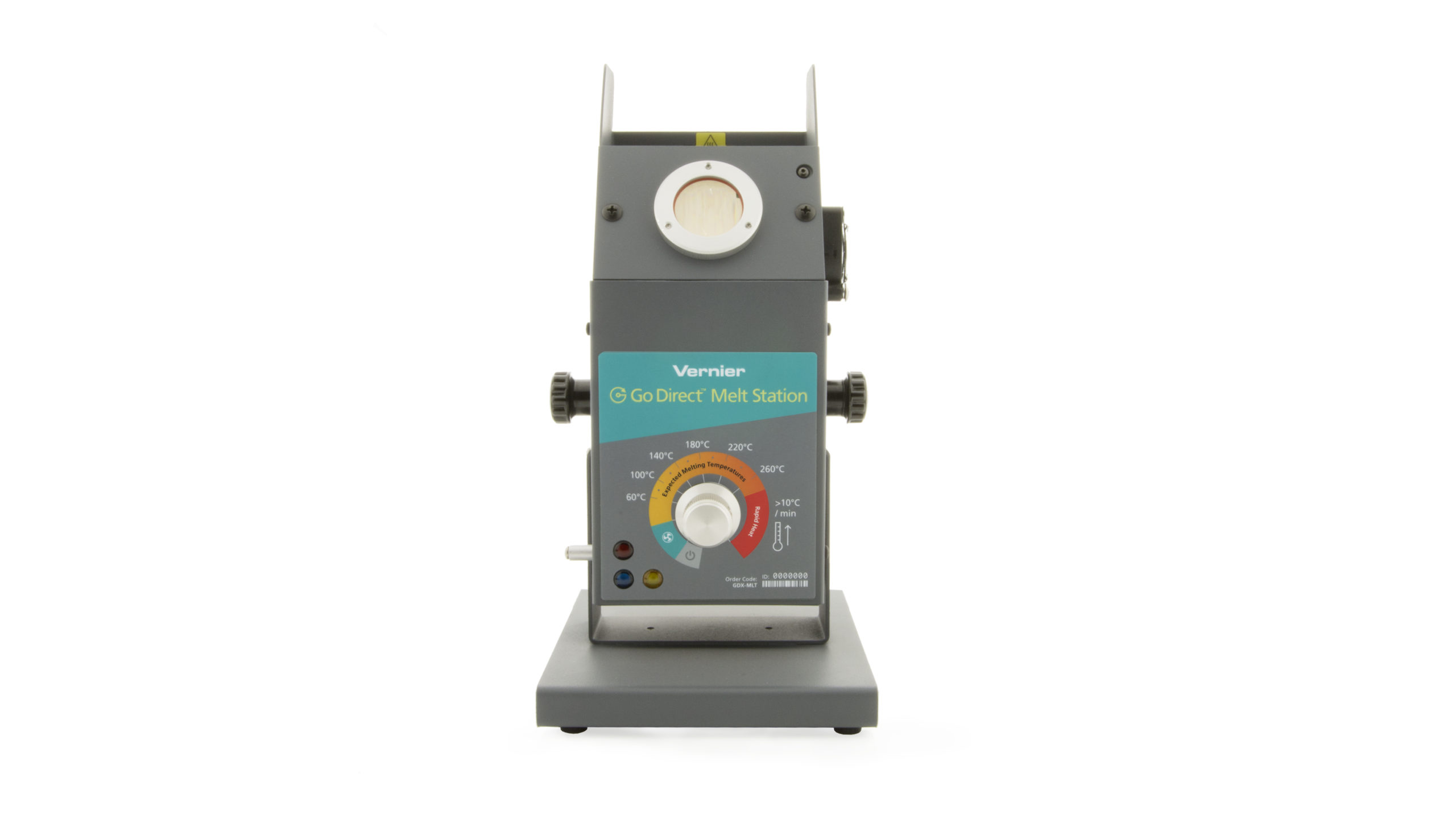

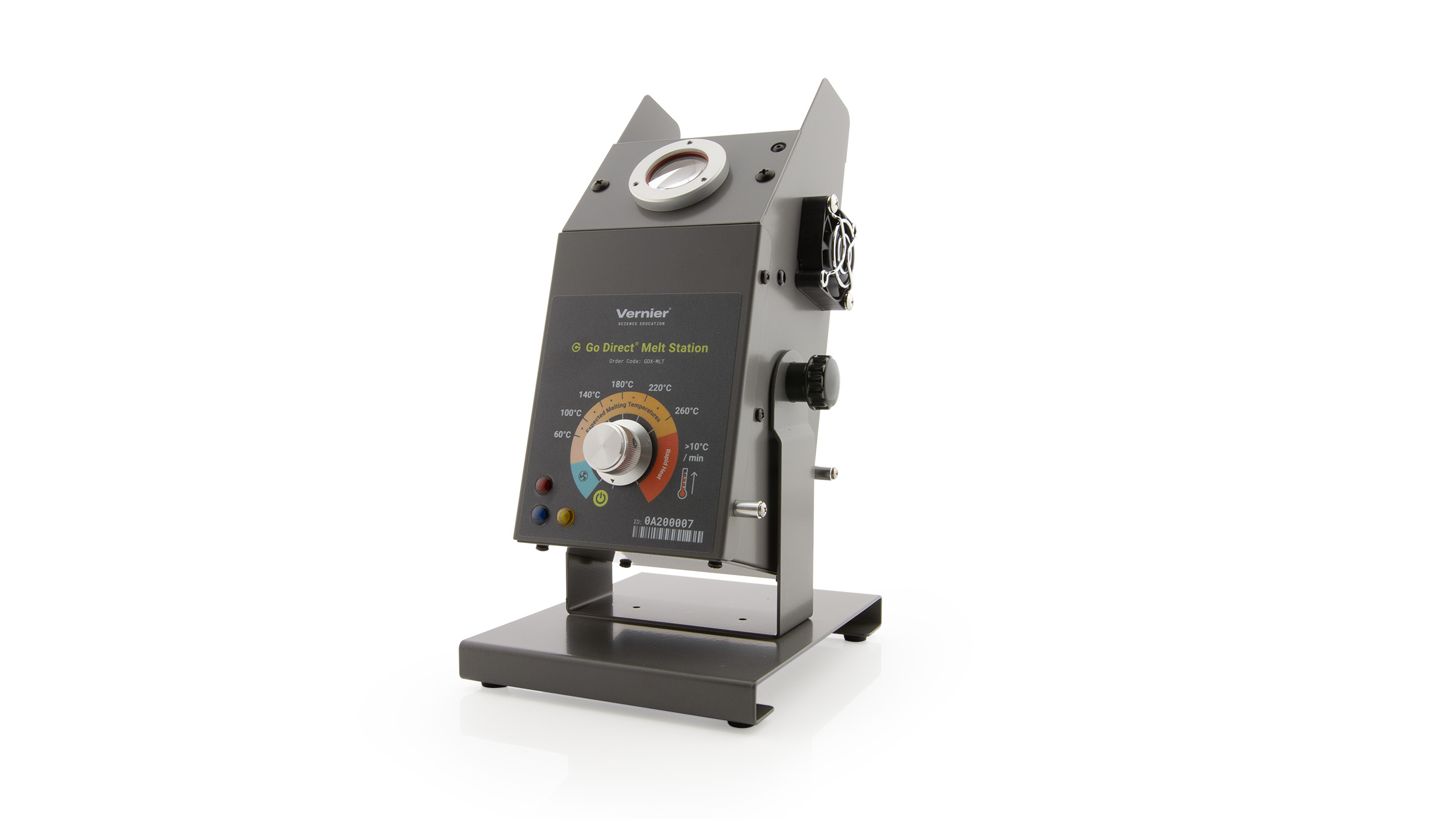

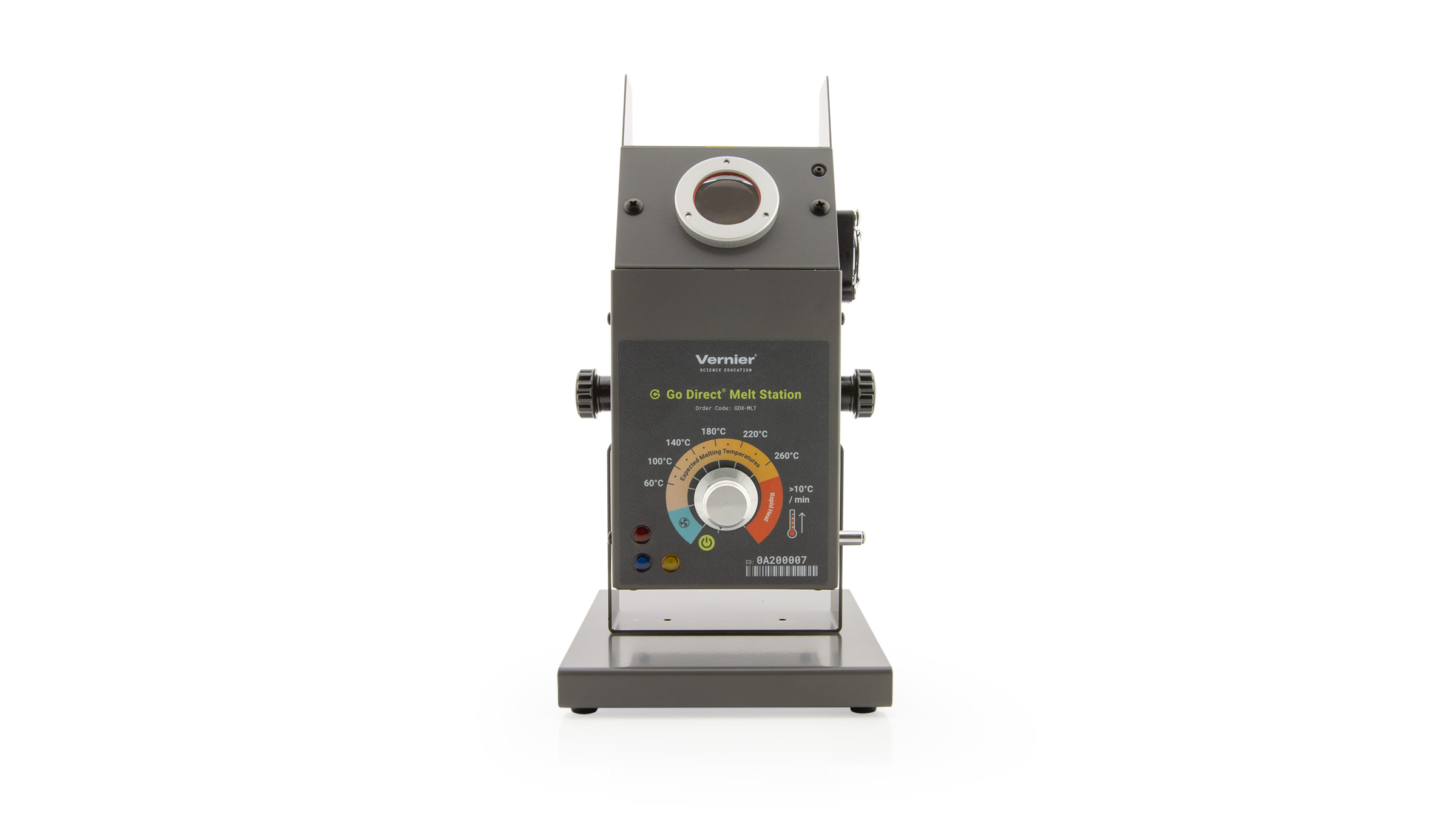

The wide-angle observation and magnification window, LED-lit heater block, and adjustable tilt base give students a clear view of the substance as they witness the state change. Internal cooling fans reduce the waiting time between sample testing. Also included is an important safety feature that automatically powers down the heating block after 60 minutes with no change to the control knob.

The Go Direct Melt Station can be used in a variety of experiments:

  • Determine the melting temperature of an known organic solid such as aspirin, ibuprofen, or caffeine.
  • Identify an unknown organic solid by its melting temperature.
  • Use melting temperature to analyze reaction products.

Wired or Wireless—The Flexibility to Choose

Our Go Direct sensors connect directly to your mobile device, Chromebook, or computer using our free Graphical Analysis 4 app—no additional equipment or software purchases are necessary. Go Direct sensors can be used wired via USB or wirelessly via Bluetooth® wireless technology, allowing you to choose the solution best for your classroom or laboratory.

WARNING: This product can expose you to chemicals, including nickel, which are known to the State of California to cause cancer. For more information, see www.P65Warnings.ca.gov

Dimensions:Base: 13 cm × 15 cm × 1.5 cm
Body: 9 cm × 9 cm × 24 cm

Weight: 1.0 kg (2.2 lbs)
Range: Ambient to 260°C
Resolution: 0.10°C
Accuracy: ±0.31 + 0.0006T, where T is the temperature in Celsius
Safety shut down: The heating block is automatically powered down after approximately 60 minutes of heating.
Capillary tubes: 1.4–1.8 mm outside diameter, 100 mm length
Capillary tube slots: 3
Viewing lens: 27 mm diameter (functional), 30 mm (actual)
Lighting of capillary slots: 3 white LEDs
Lighting of control dial:Red LED (indicates heating mode)
Blue LED (indicates cooling mode with cooling fan running)
Yellow LED (safety shut off activated)

Connections:Wireless: Bluetooth
Wired: USB

Go Direct Melt Station
100 standard capillary tubes
Power supply
Micro USB Cable

Melt Station Capillary Tubes (MLT-TUBE)

Micro USB Cable (CB-USB-MICRO)
Micro USB to USB-C Cable (CB-USB-C-MICRO)

User Manual: https://www.vernier.com/manuals/gdx-mlt/
Warranty: 5-year limited warranty (consumables excluded)
FAQ: https://www.vernier.com/til/3852/
