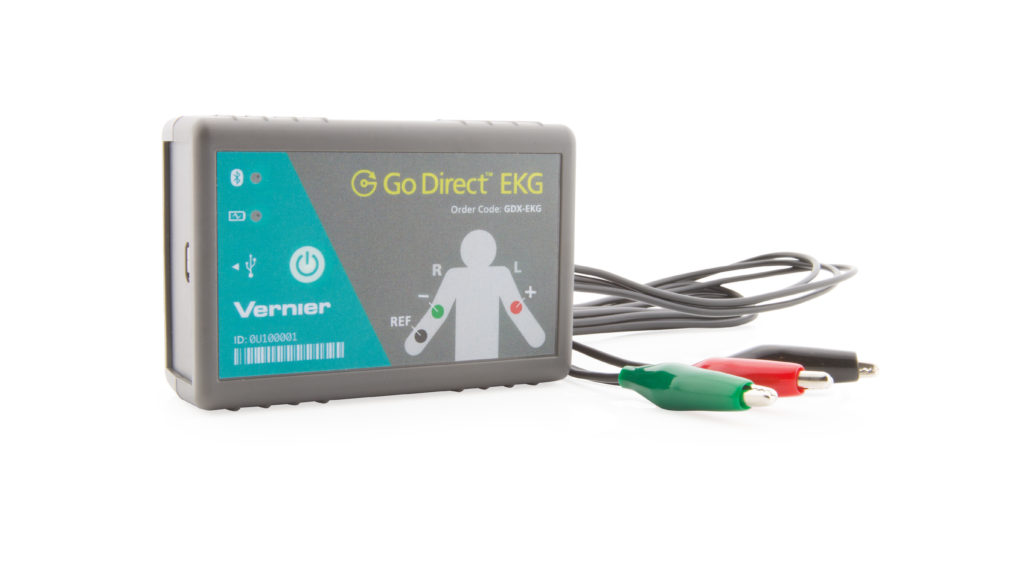

Go Direct® EKG Sensor

The Go Direct EKG Sensor records electrical signals produced during heart or muscle contractions. It connects via Bluetooth® wireless technology or via USB to your device.

SKU: GDX-EKG Categories: , ,

$270.00

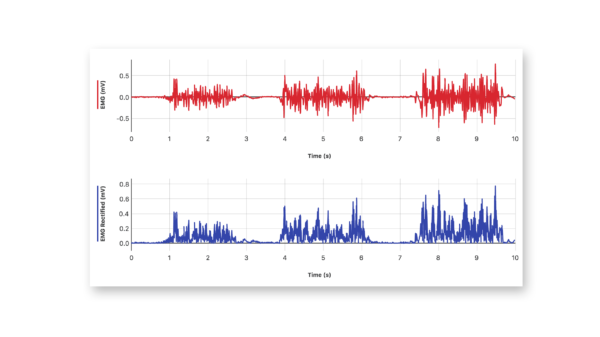

The Go Direct EKG Sensor measures electrical activity in the heart and electrical signals produced during muscle contractions. The wireless options minimize the concern of cables getting caught and tangled during experiments. This sensor provides two separate outputs: one optimized for standard 3-lead EKG tracings and one optimized for surface EMG recordings. EMG recordings can also be rectified automatically by the sensor.

The Go Direct EKG Sensor can be used in a variety of experiments:

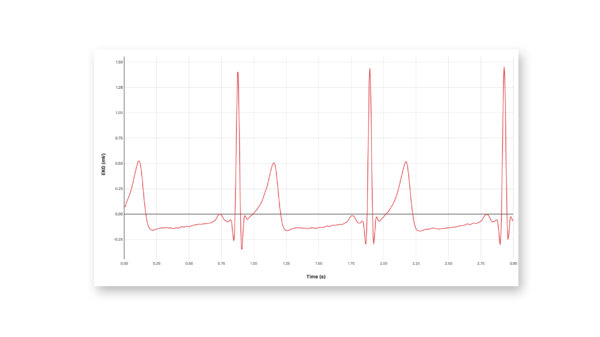

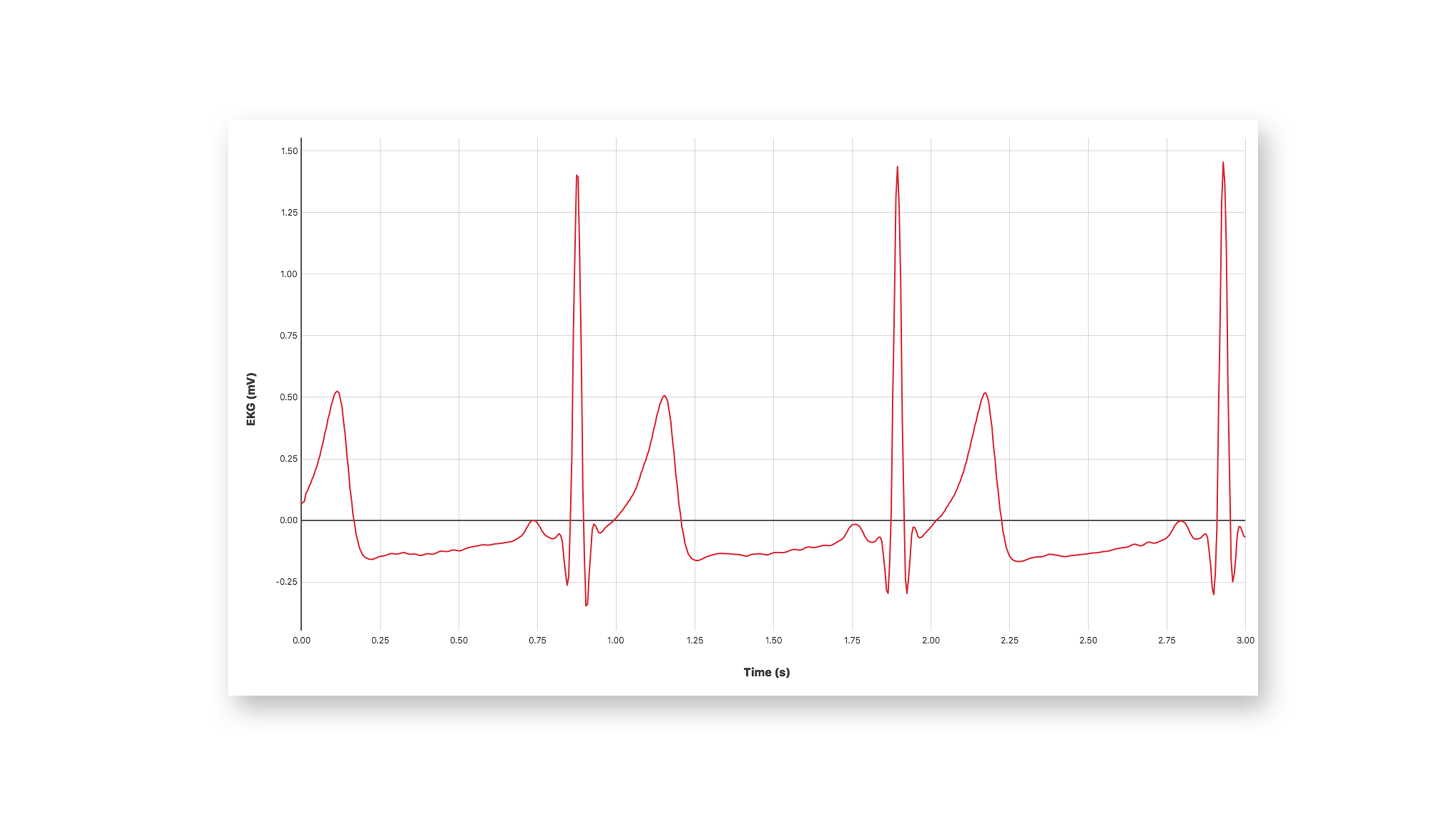

  • Compare and measure students’ electrocardiogram (EKG/ECG) waveforms.
  • Determine heart rate by examining the number of QRS waveforms in a series of electrocardiograms (EKG/ECGs).

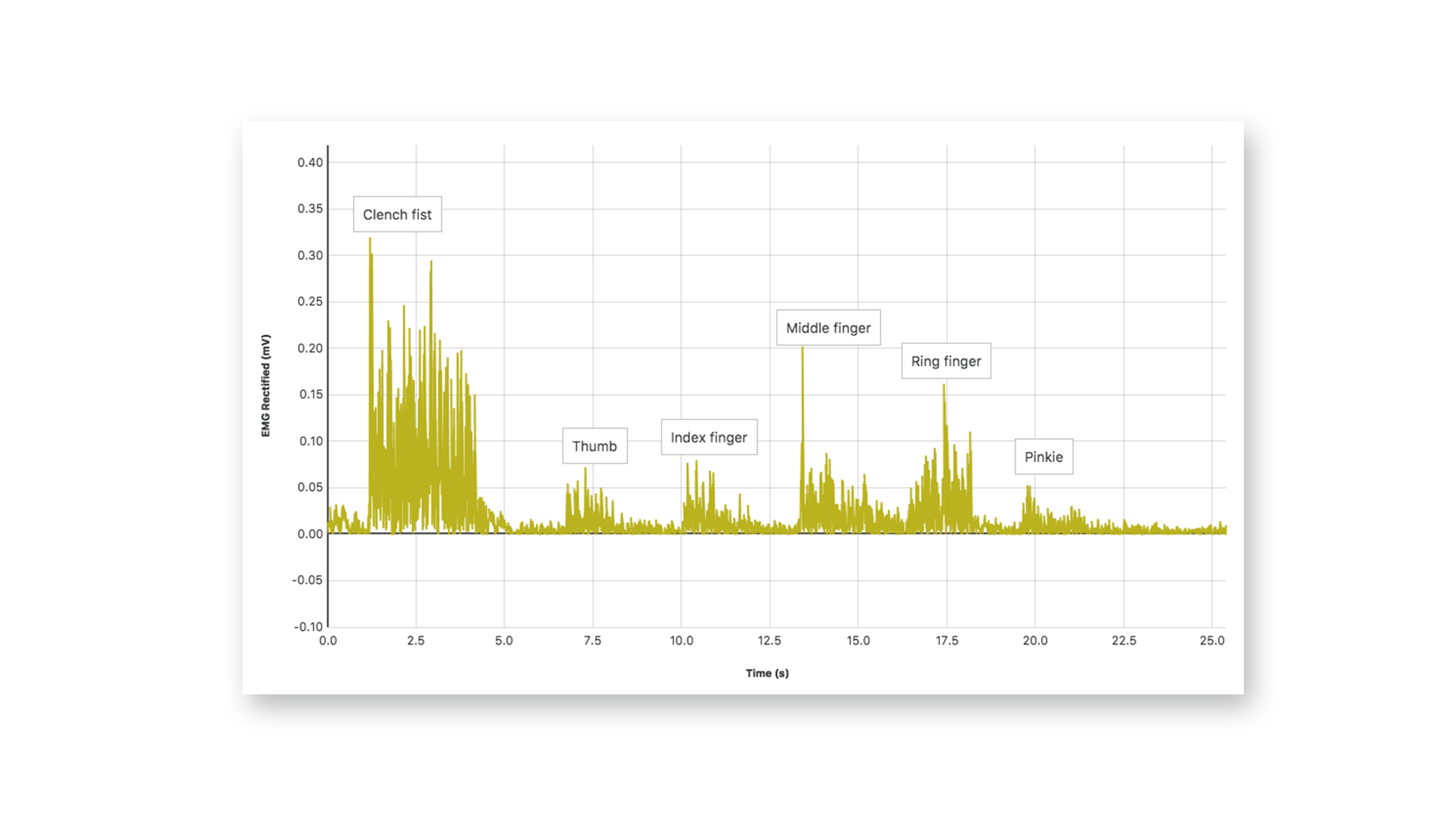

  • Study contractions of muscles (EMG) in the arm, leg, or jaw.
  • Correlate measurements of grip strength and electrical activity with muscle fatigue.

Rechargeable Battery—Ready When You Are

The robust rechargeable battery offers long battery life and provides always-ready operation when using the sensor wirelessly. Monitor battery life directly from our free Graphical Analysis 4 app or LabQuest 3 App. Should the battery run low, simply connect the sensor to the charging cable and keep on collecting—no interruptions or inconvenience to you or your students.

Wired or Wireless—The Flexibility to Choose

Our Go Direct sensors connect directly to your mobile device, Chromebook, or computer using our free Graphical Analysis 4 app—no additional equipment or software purchases are necessary. Go Direct sensors can be used wired via USB or wirelessly via Bluetooth® wireless technology, allowing you to choose the solution best for your classroom or laboratory.

Range: ±200 mV
Resolution: 0.024 µV
Maximum sampling rate: 400 samples/s
EKG channel settingsHigh-pass: 0.300 Hz
Low-pass: 22.5 Hz –3 dB cutoff with –80 dB attenuation above 50 Hz

EMG channel settingsHigh-pass: 2 Hz
Low-pass: 29 Hz –3 dB cutoff with –80 dB attenuation above 50 Hz

Heart rate calculationSample windows: 6 s
Advance interval: 1 s

ConnectionsWireless: Bluetooth
Wired: USB

Go Direct EKG Sensor
A package of 100 disposable electrodes
Micro USB Cable

Go Direct® Charge Station (GDX-CRG)

Go Direct® 300 mAh Replacement Battery (GDX-BAT-300)
Micro USB Cable (CB-USB-MICRO)
EKG Electrodes (ELEC)

User Manual: https://www.vernier.com/manuals/gdx-ekg/
Warranty: 5-year limited warranty (1 year on battery, consumables excluded)
FAQ:
