Constant Current System
The Constant Current System is a DC power source with a built-in current probe designed for use in electrochemistry experiments.
$142.00
Due to recent changes in global trade policy, our products are being impacted by tariffs. This means a surcharge of 5% will be applied to orders received starting May 12th, with the exception of software and books. If the tariffs are reduced or removed in the future, we’ll adjust our pricing as quickly as possible. Learn More
Education Levels
Product Families

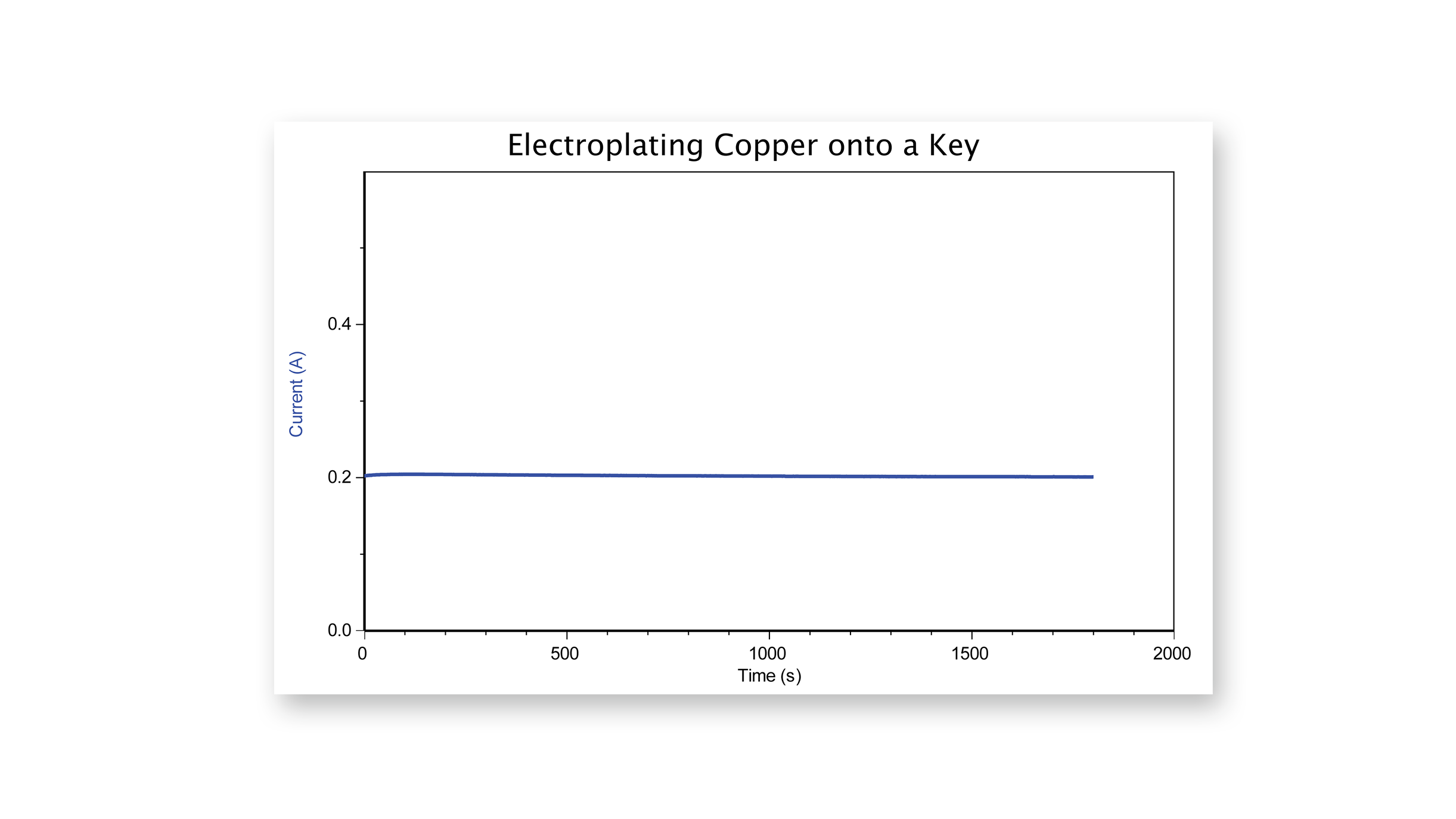

The Constant Current System eliminates the need for a separate power supply when performing electroplating and electrolysis experiments in chemistry. It is capable of delivering up to 0.6 A at 5 V DC.
A current-sensing resistor allows monitoring of the output current through the sensor cable. The user can set the current by tuning the dial with the system automatically adjusting the voltage.
Use the Constant Current System to explore Faraday’s law and determine Avogadro’s Number.
Note that it can only be used in conjunction with its own built-in power supply—it cannot be used to measure the current of a circuit using a different power supply.
Range: 0-0.6 A
Typical Resolution: 0.09 mA
Linearity: 0.1%
Supply voltage: 5 VDC
Current in amperes:Slope: 0.145 A/V
Intercept: 0 A
Vernier Constant Current System
Power supply
The power supply included is the same as the LabQuest power supply.
LabQuest Power Supply (LQ-PS)
User Manual: https://www.vernier.com/manuals/ccs-bta/
Warranty: 5-year limited warranty
FAQ: https://www.vernier.com/til/2496/
