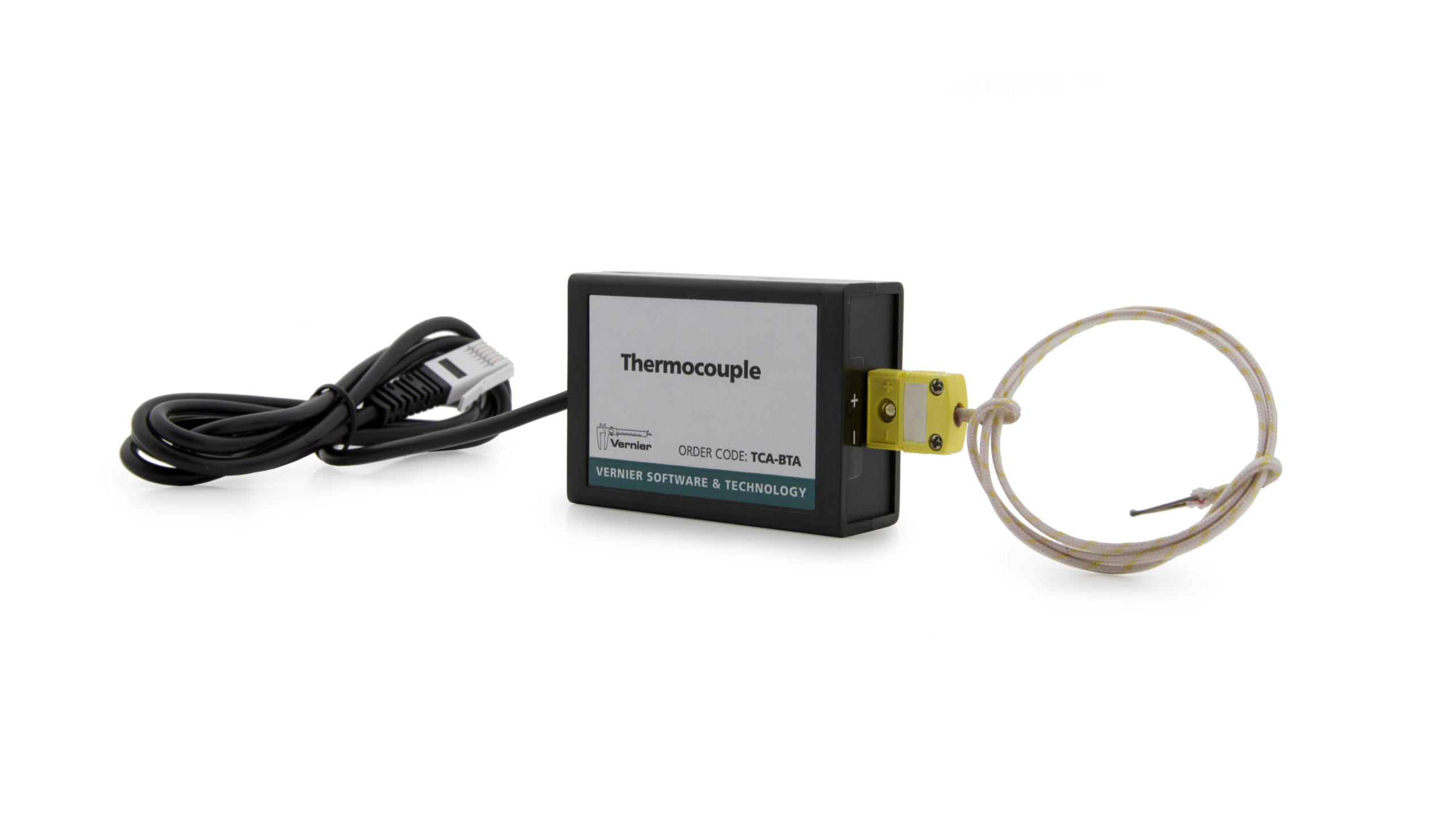

Thermocouple

A simple and rugged sensor designed to measure temperature in the range of –200ºC to 1400ºC. Low cost and a wide temperature range make the Thermocouple an economical, versatile temperature sensor.

SKU: TCA-BTA Categories: ,

$142.00

Due to recent changes in global trade policy, our products are being impacted by tariffs. This means a surcharge of 5% will be applied to orders received starting May 12th, with the exception of software and books. If the tariffs are reduced or removed in the future, we’ll adjust our pricing as quickly as possible. Learn More

This sensor uses type-K thermocouple wire to measure temperatures in the range of -200 to 1400˚C. It can be used to measure flame temperatures as high as 1400˚C, or liquid nitrogen temperatures at -196˚C. The Thermocouple has an internal ice-point compensation chip, so you do not need to place a reference wire in an ice-water bath. You can simply use one measuring lead to take temperature readings. Each Thermocouple is individually calibrated.

Typical Accuracy:0ºC to 900ºC: ±2.2º
–200ºC to 0ºC: ±5ºC
900ºC to 1400ºC: ±15ºC

Power: 11 mA @ 5 VDC
Typical Resolution: 0.40ºC

Vernier Thermocouple
Type-K Thermocouple Wire

Type-K Thermocouple Wire (KWIRE-TCA)

User Manual: https://www.vernier.com/manuals/tca-bta/
Warranty: 5-year limited warranty
FAQ: https://www.vernier.com/til/1440/
