Pyranometer
The Pyranometer measures the power of electromagnetic radiation in watts per square meter. It is sensitive to near infrared, visible, and UV radiation, where 90% of solar energy is concentrated.
$501.00
Due to recent changes in global trade policy, our products are being impacted by tariffs. This means a surcharge of 5% will be applied to orders received starting May 12th, with the exception of software and books. If the tariffs are reduced or removed in the future, we’ll adjust our pricing as quickly as possible. Learn More
Subjects
Product Families
The Pyranometer measures the power of electromagnetic radiation. It is sensitive to near infrared, visible, and UV radiation, where 90% of solar energy is concentrated. It reads in watts per square meter, so it is great for experiments with solar cells and calculating their efficiency.
It is weatherproof and has a dome-shape top to allow it to handle a wide range of sun angles. It comes with a 6 meter cord.
Irradiance Range: 0 to 1100 watts/m2 (in full sun)
Absolute Accuracy: ±5%
Repeatability: ±1%
Long-Term Drift: Less than 3% per year
Cosine Response:45° zenith angle: 1%
75° zenith angle: ±5%
Wavelength range: 370 nm to 1140 nm
Current draw: 300 µA
Output signal: 0 to 4.4 V (dark to full sunlight)
Typical Resolution: 0.3 Watts/m2
Sensor dimentions:Diameter: 2.4 cm
Height: 2.75 cm
Materials: Anodized aluminum with cast acrylic lens
Download the user manual for full specifications

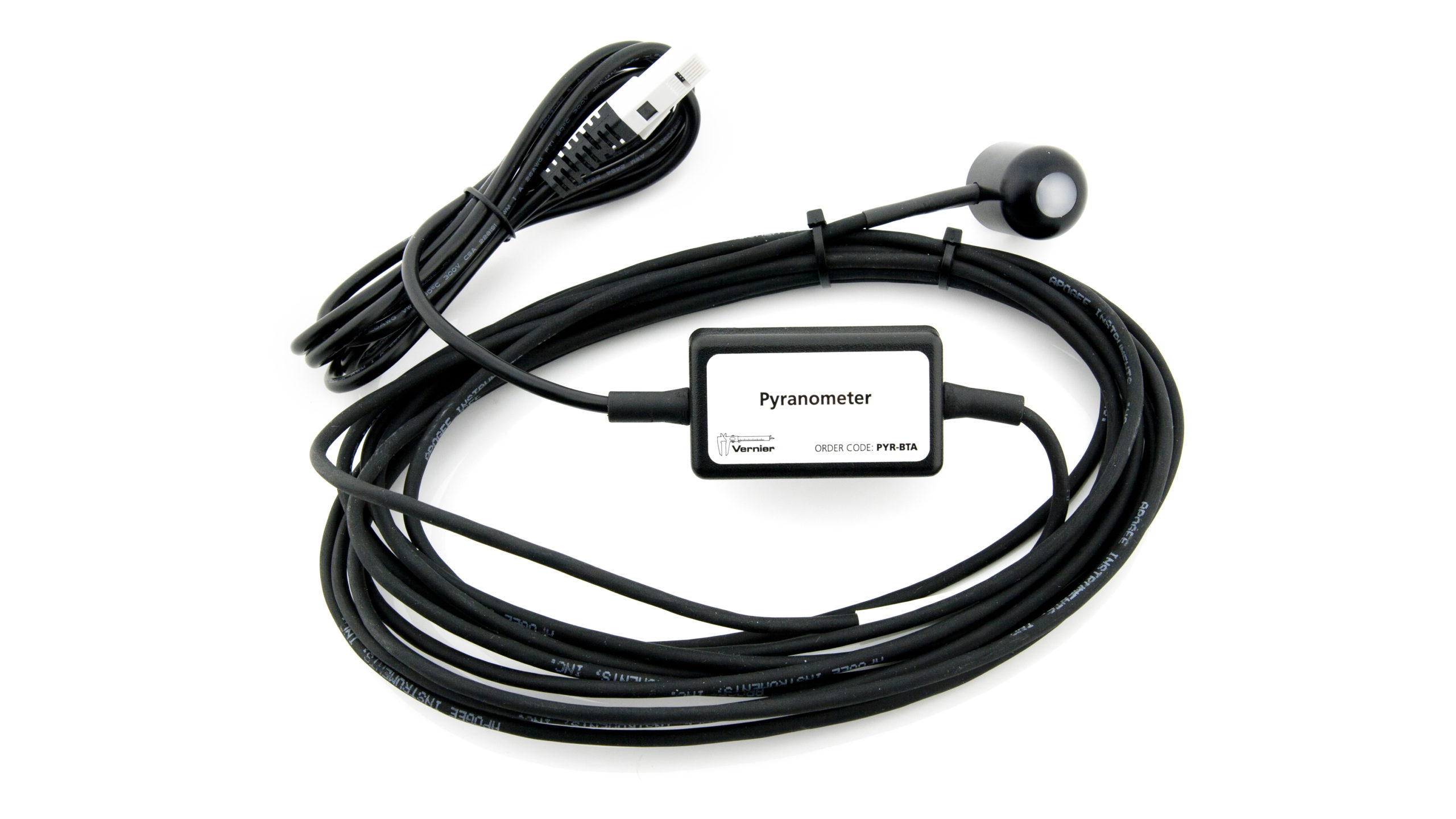

Vernier Pyranometer
Pyranometer lens cover
User manual
User Manual: https://www.vernier.com/manuals/pyr-bta/
Warranty: 5-year limited warranty
FAQ: https://www.vernier.com/til/2777/
