Vernier Radiation Monitor

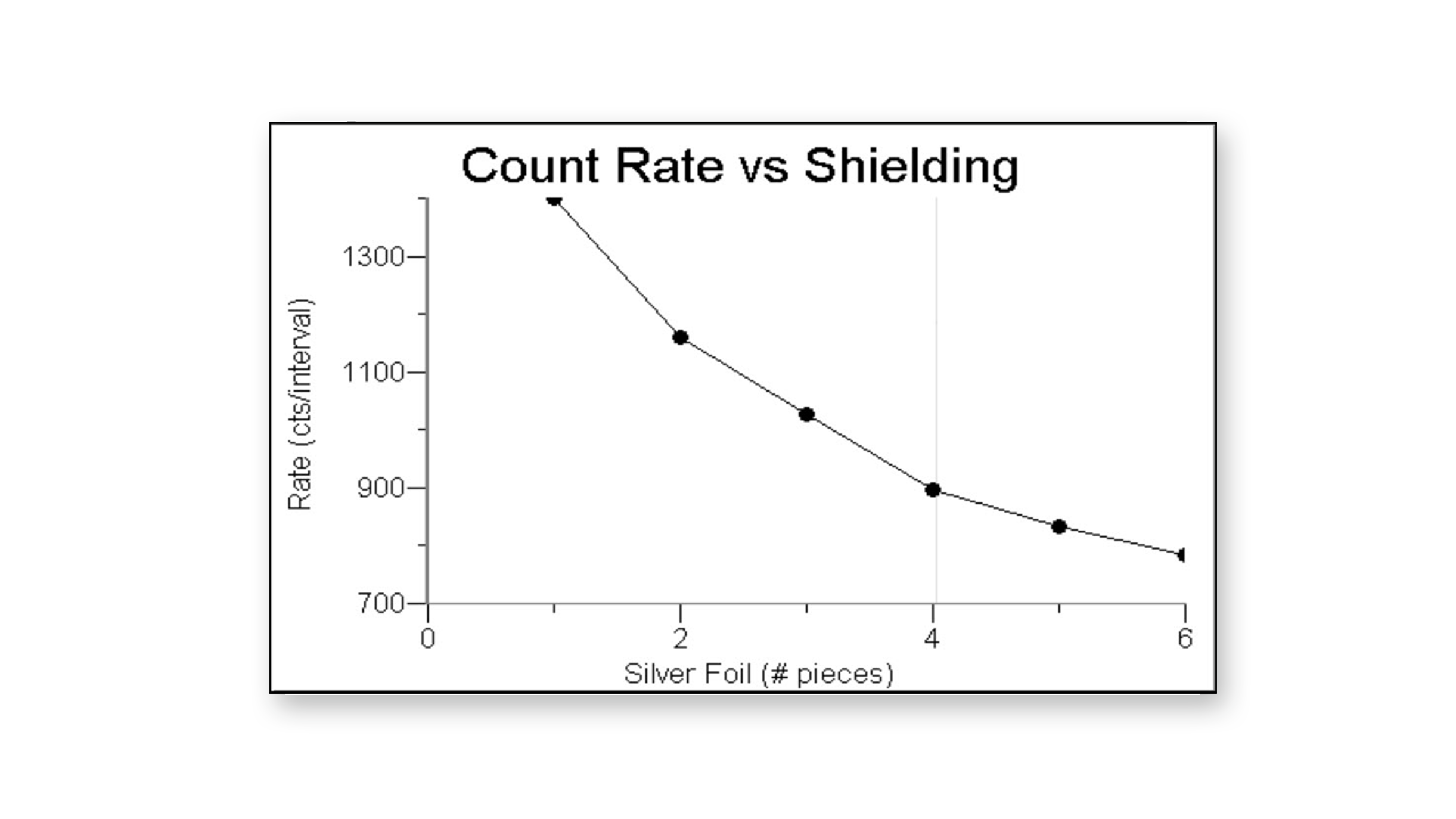

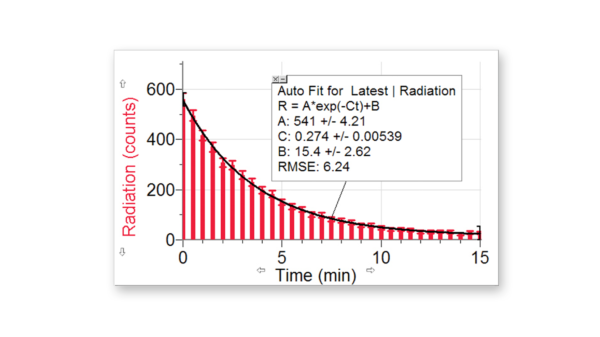

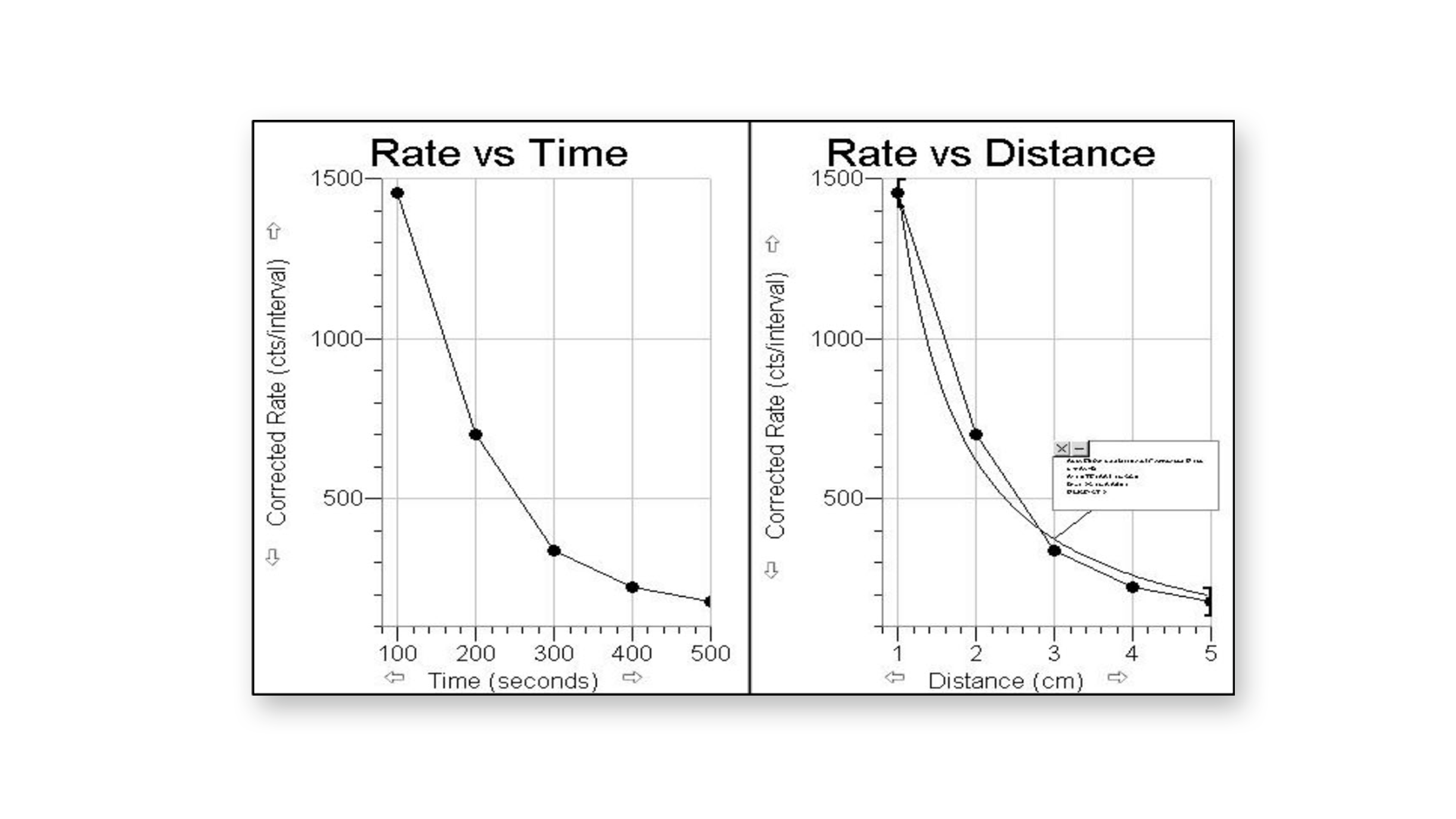

The Vernier Radiation Monitor detects alpha, beta, gamma, and X-ray radiation. Applications include nuclear counting statistics, shielding, and decay rate measurements.

SKU: VRM-BTD Categories: ,

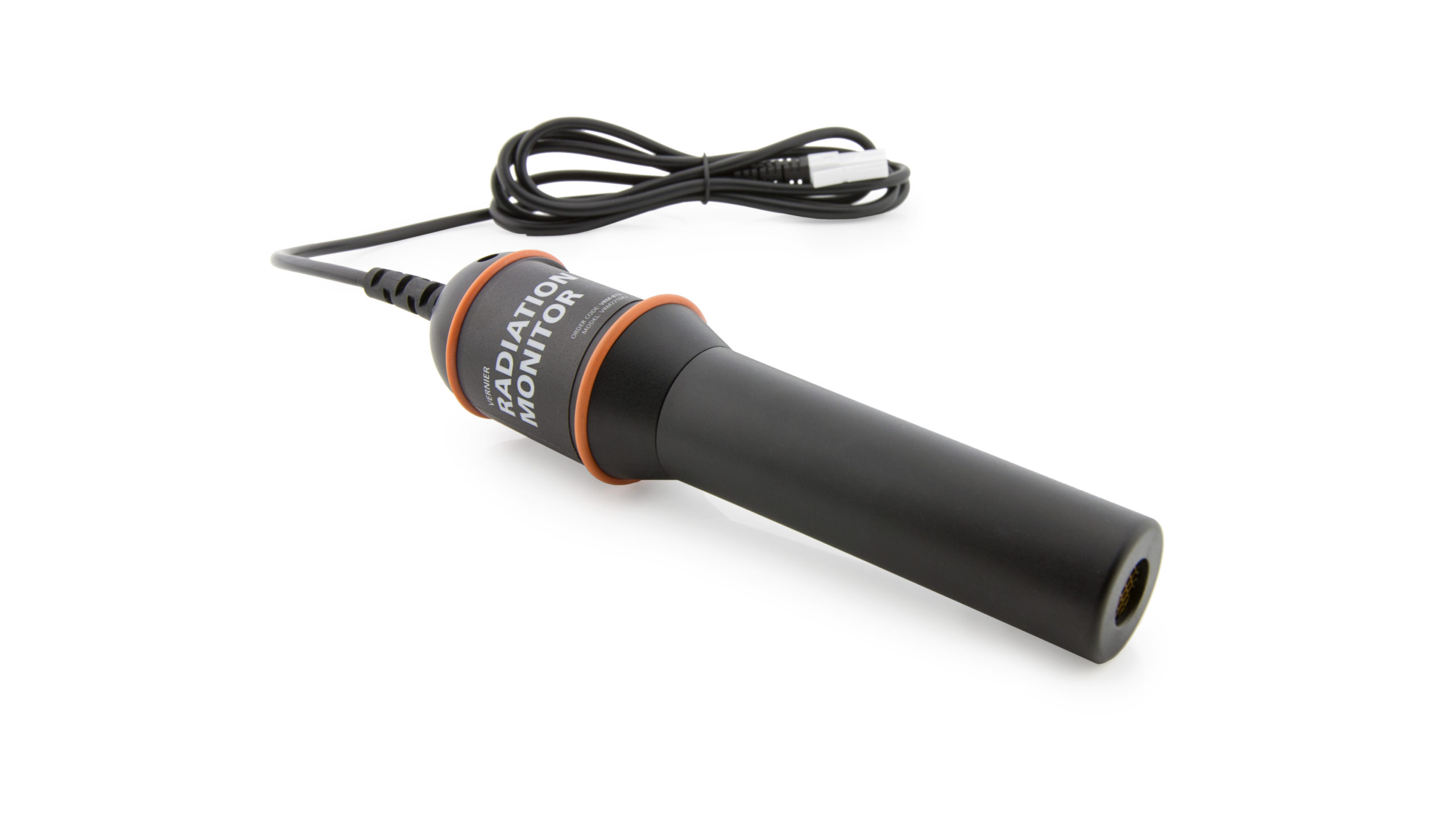

Use the Vernier Radiation Monitor to explore radiation statistics, measure the rate of nuclear decay, and monitor radon progeny. This easy-to-use sensor consists of a Geiger-Mueller tube mounted in a small, rugged, plastic case. A thin window protected by a metal screen allows alpha radiation to be detected, along with beta and gamma. Each new detection is indicated by a flashing red LED light and can also include an optional audio signal. This sensor requires no battery and is powered by the data-collection interface.

Sensor: LND 712 (or equivalent) halogen-quenched GM tube with a mica end window, 1.5 to 2.0 mg/cm2 thick
Sensitive to alpha, beta, gamma, and X-ray radiation
Powered by interface connection
Red LED blinks on radiation detection
Optional audio signal on radiation detection

Vernier Radiation Monitor

User Manual:
Warranty: 5-year limited warranty (1 year on GM tube)
