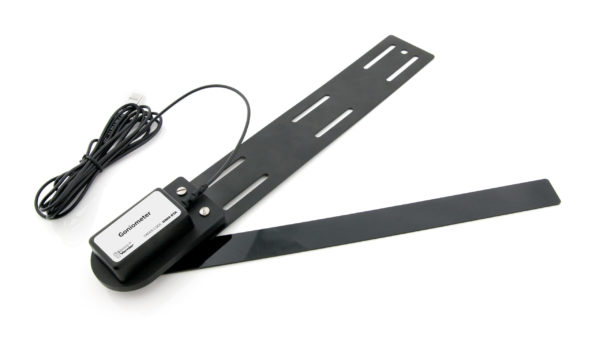

Goniometer

The Goniometer measures the angle of a joint, such as the knee or elbow. Use it to analyze the range of motion of a limb during different types of physical activity.

SKU: GNM-BTA Category:

$267.00

Due to recent changes in global trade policy, our products are being impacted by tariffs. This means a surcharge of 5% will be applied to orders received starting May 12th, with the exception of software and books. If the tariffs are reduced or removed in the future, we’ll adjust our pricing as quickly as possible. Learn More

The Goniometer can be used to measure the dynamic motion of a limb during different types of physical activity.

  • A set of elastic straps are used to secure the sensor to the subject.
  • The lightweight and flexible joint arms allow the limb to move naturally.
  • Use it with a Vernier EKG sensor.
  • The sensor can also be detached from the base plate and flexible arms so it can be used in a variety of STEM and engineering activities.

WARNING: This product can expose you to chemicals, including bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov For more information, see www.P65Warnings.ca.gov

Range: 0-340° (+/-170°)
Resolution:13-bit Typical Resolution: 0.06°
12-bit Typical Resolution: 0.12°
10-bit Typical Resolution: 0.5°

Goniometer: joint angle sensor with base plate attached to static arm
12-inch flexible joint arm
10-inch flexible joint arm
8-inch flexible joint arm
Two 24-inch elastic, hook-and-loop straps
Two 14-inch elastic, hook-and-loop straps

Goniometer Replacement Straps (4 elastic straps) (GNM-STRAPS)
Goniometer Replacement Arms (3 flexible arms) (GNM-ARMS)

User Manual: https://www.vernier.com/manuals/gnm-bta/
Warranty: 5-year limited warranty
FAQ: https://www.vernier.com/til/2886/
