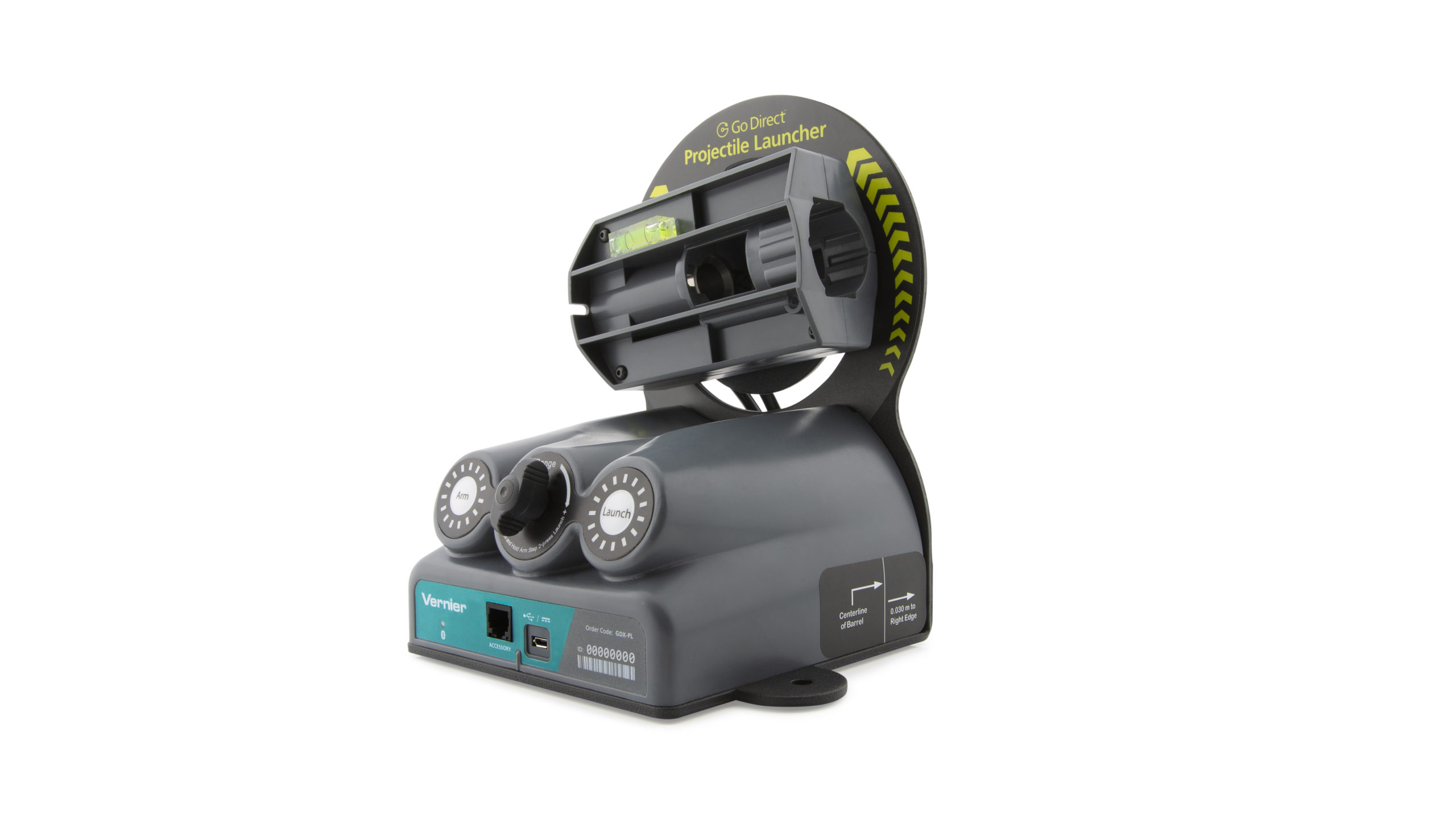

Go Direct® Projectile Launcher

The Go Direct Projectile Launcher is used to investigate projectile motion. It connects via Bluetooth® wireless technology or via USB to your device.

SKU: GDX-PL Categories: , ,


Education Levels


Product Families

Use the Go Direct Projectile Launcher to investigate important concepts in two-dimensional kinematics. Launch steel balls at angles between 0 and 90 degrees and over distances up to 2.5 m.

The solid, heavy base provides an easy-to-use and reliable setup. A unique pneumatic launching system provides excellent repeatability and allows you to set the launch speed.

Built-in photogates provide easy and accurate measurement of the ball’s launch speed and built-in accelerometers report launch angle, allowing for precise quantitative analysis of projectile motion.

Our Go Direct sensors connect directly to your mobile device, Chromebook™, or computer using our free Graphical Analysis™ 4 app—no additional equipment or software purchases are necessary.

The unit is powered via the included USB cable connected to an available USB port on your device, USB wall outlet, or USB power brick.

Launch angle: 0–90 degrees
Launch speed: 0–6 m/s
Initial launch height: 146 mm
Maximum launch distance: 2.5 m
Internal photogate interval: 50 mm
Steel ball diameter: 17.46 mm
Steel ball mass: 21.8 g
ConnectionsWireless: Bluetooth
Wired: USB

Projectile Launcher
6 Steel balls
Hand pump
2 Pairs of safety goggles
Roll of waxed marking paper
Micro USB Cable

Independence of Motion Accessory (IOM-VPL)
Micro USB to USB-C Cable (CB-USB-C-MICRO)
Projectile Stop (PS-VPL)
Time of Flight Pad (TOF-VPL)

Micro USB Cable (CB-USB-MICRO)
Goggles (Set of 2) (GGL-VPL)
Hand Air Pump (PUMP-VPL)
Steel Balls (Set of 6) (STB-VPL)
Wax Tape (300 feet) (WXT-VPL)

User Manual: https://www.vernier.com/manuals/gdx-pl/
Warranty: 5-year limited warranty
FAQ: https://www.vernier.com/til/4196/
