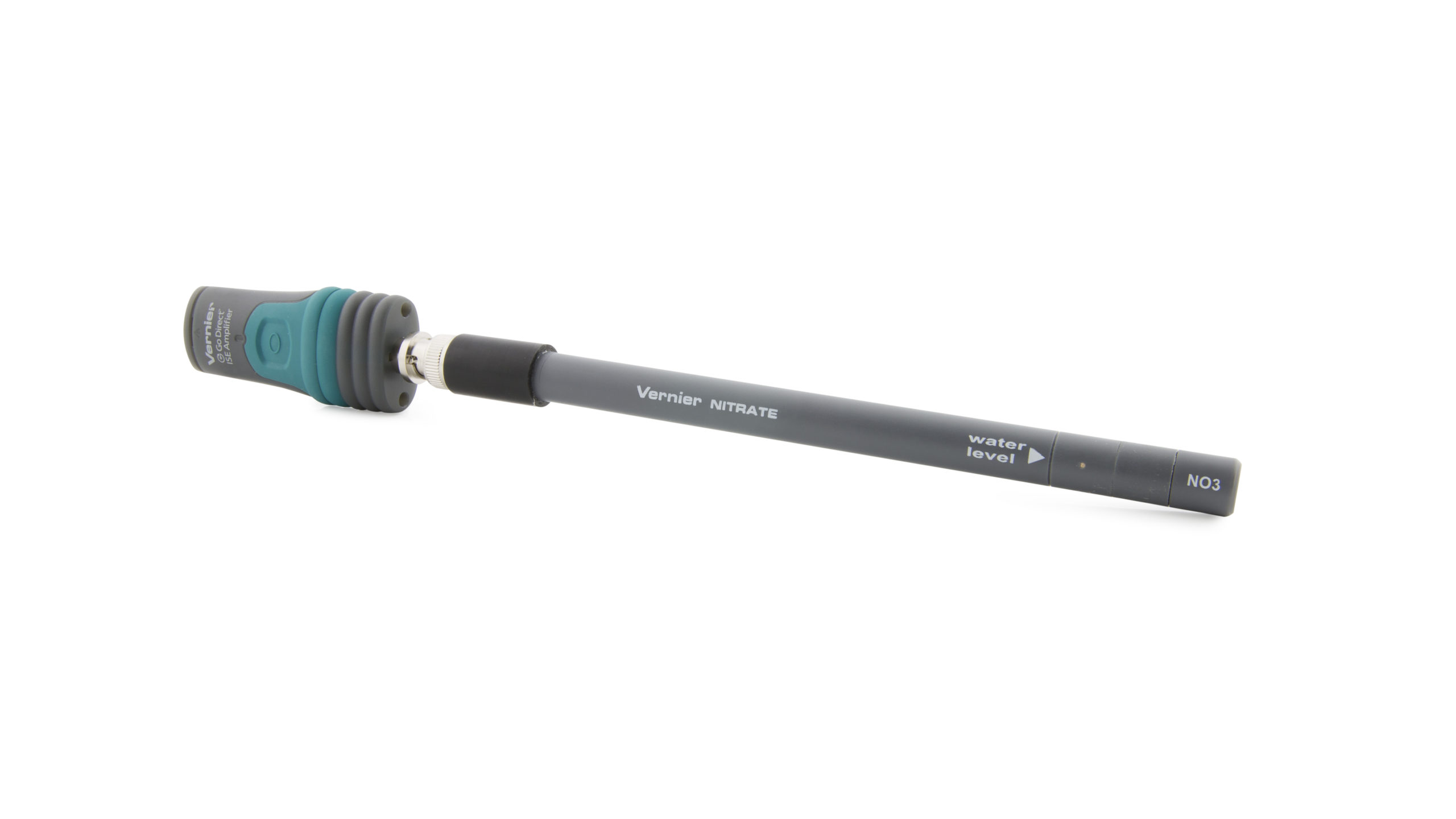

Go Direct® Nitrate Ion-Selective Electrode
The Go Direct Nitrate Ion-Selective Electrode (ISE) can be used to measure the concentration of nitrate (NO3–) in aqueous samples. It connects via Bluetooth® wireless technology or via USB to your device.
Nitrate concentration, which can be increased by acidic rainfall, fertilizer runoff from fields, and plant or animal decay or waste, is an important parameter in nearly all water quality studies. The Go Direct Nitrate Ion-Selective Electrode is used to wirelessly determine the concentration of the nitrate ion in a water sample. These levels can be measured as mV or mg/L.
The versatile BNC connector allows students to easily replace the electrode when it expires or becomes damaged. You need only replace the electrode and not the entire sensor—lowering your overall equipment costs.
The Go Direct Nitrate Ion-Selective Electrode has a combination-style, non-refillable, gel-filled electrode. Like all other PVC ISE membranes, the membrane on the ISE has a limited life expectancy. However, the replaceable module of ISE allows you to simply discard the used membrane module and replace it with a new one.
Rechargeable Battery—Ready When You Are
The robust rechargeable battery offers long battery life and provides always-ready operation when using the sensor wirelessly. Monitor battery life directly from our free Graphical Analysis™ 4 app or LabQuest 3 App. Should the battery run low, simply connect the sensor to the charging cable and keep on collecting—no interruptions or inconvenience to you or your students.
Wired or Wireless—The Flexibility to Choose
Our Go Direct sensors connect directly to your mobile device, Chromebook™, or computer using our free Graphical Analysis™ 4 app—no additional equipment or software purchases are necessary. Go Direct sensors can be used wired via USB or wirelessly via Bluetooth® wireless technology, allowing you to choose the solution best for your classroom or laboratory.
Note: We recommend that you do not purchase ISE replacement modules too far in advance of their expected time of use as degradation occurs while they are stored on the shelf.
Important: Ion-Selective Electrodes require good chemical technique and careful calibration to obtain accurate results; they are not recommended for middle school or elementary students.
Range (mV): ±1000 mV
Range (concentration): 1 to 14,000 mg/L (or ppm)
Accuracy: ±10% of full scale (calibrated 1 to 100 mg/L)
Interfering ions: ClO4–, I–, ClO3–, F–
pH range: 2.5–11 (no pH compensation)
Temperature range: 0–40°C (no temperature compensation)
Electrode slope: 55 ±3 mV/decade at 25°C
Electrode resistance: 0.1 to 5 MΩ
Minimum sample size: must be submerged 2.8 cm (1.1 in)
Go Direct ISE Amplifier attached to a Go Direct Nitrate Ion-Selective Electrode BNC
Micro USB cable
30 mL bottle of High Standard solution with SDS (100 mg/L NO3–)
30 mL bottle of Low Standard solution with SDS (1 mg/L NO3–)
Short-Term ISE Soaking Bottle
Go Direct® Ammonium Ion-Selective Electrode BNC (GDX-NH4-BNC)
Go Direct® Calcium Ion-Selective Electrode BNC (GDX-CA-BNC)
Go Direct® Charge Station (GDX-CRG)
Go Direct® Chloride Ion-Selective Electrode BNC (GDX-CL-BNC)
Go Direct® Potassium Ion-Selective Electrode BNC (GDX-K-BNC)
Go Direct® Sensor Clamp (GDX-CLAMP)
Go Direct® Nitrate Ion-Selective Electrode BNC (GDX-NO3-BNC)
Go Direct® 300 mAh Replacement Battery (GDX-BAT-300)
Nitrate Replacement Module (NO3-MOD)
Standard NO3 ISE Solution ()
