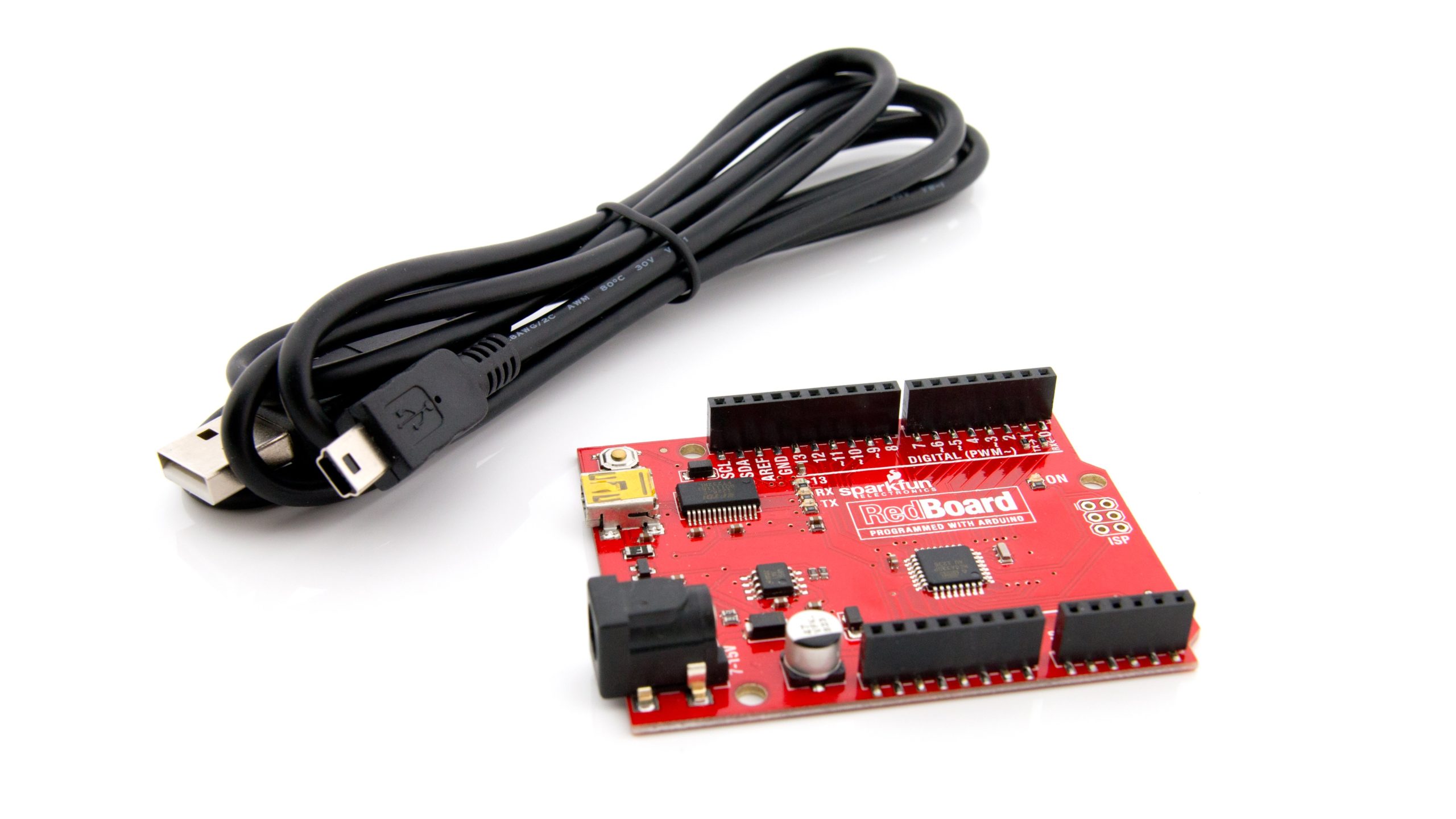

SparkFun RedBoard with cable

The SparkFun RedBoard is an Arduino™-compatible board, which is perfect for use with the Vernier Arduino Interface Shield. A USB Mini-B cable is included.

SKU: ARD-RED Category:

$37.00

Education Levels

Subjects

The SparkFun RedBoard is an Arduino-compatible board that is perfect for use with the Vernier Arduino Interface Shield. It is a surface-mount board, which is pin-for-pin compatible with a R3 3 Arduino layout. The key difference between the RedBoard and most Arduino boards is that it uses a mini-B USB connector instead of a full-size type-B USB connector.

The RedBoard operating voltage is 5 volts, which is required for use with most Vernier sensors. You can power the RedBoard either with the USB connector (included) or with a 7-15 V barrel jack power supply (not included).

To use Vernier sensors with the SparkFun Redboard, you will need the Vernier Arduino Interface Shield.

Dimensions: 2.7 x 2.1″ (68.58 x 53.34mm)
USB-to-Serial Chip: FTDI FT232RL
Main Processor: ATmega328
Flash Memory: 32kB
Clock Speed: 16MHz
Operating Voltage: 5 volts
Digital I/O Pins: 14 (6 PWM outputs)
Analog Inputs: 6
Button: Reset
USB Connector: USB Mini-B cable (included)
Barrel jack power connector: 5 mm, with 2.1 mm center pole (center pole +, 7 to 15 V supply)

SparkFun RedBoard with cable
Mini-B USB cable (1.5 m long)

User Manual: https://www.vernier.com/manuals/ard-red/
Warranty: 1-year limited warranty from SparkFun
FAQ:
