Optional Breadboard Kit for the Vernier Circuit Board 2
Install this small breadboard on the Vernier Circuit Board 2 in order to easily conduct experiments using additional electronic components not permanently mounted on the Vernier Circuit Board 2. Some components are included to get you started.
$43.00
Education Levels
Subjects
With this kit, you can create blinking LED circuits with the 555 timer, introduce students to transistors, or make a simple light-sensing circuit. Included wires connect to both the breadboard and the Vernier Circuit Board 2 components. Additional jumper wires for breadboard use only are also provided.

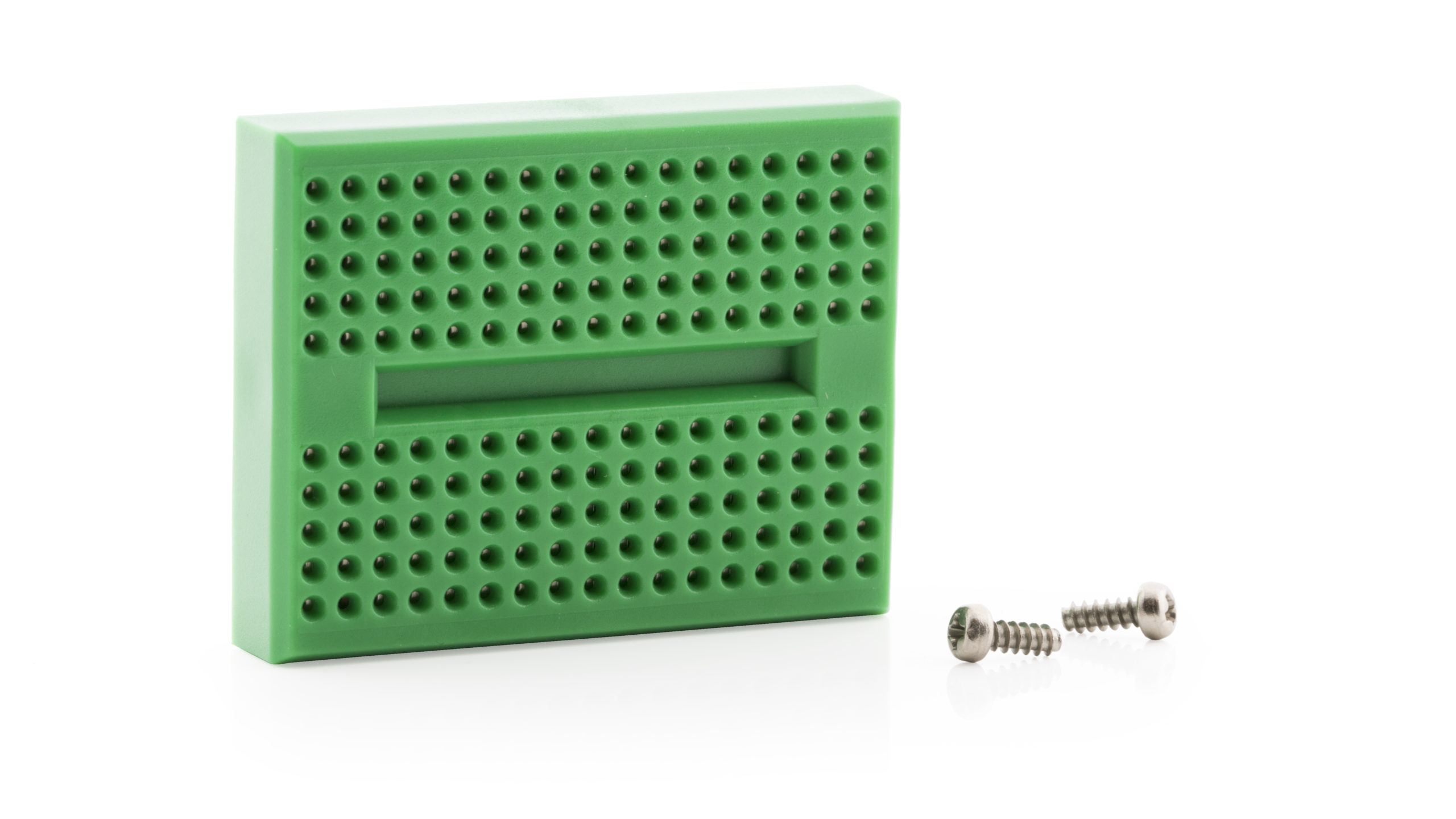

Green breadboard (3.5 cm x 4.5 cm)
Double-sided tape for mounting the breadboard to the Vernier Circuit Board 2
Small screws (2) for securely mounting the breadboard to the VCB2
Jumper wires, male-male (4)
Jumper wires, male-clip (6)
220 Ω resistors (5)
Green LED
Blue LED
Red-Green-Blue tri-color LED (4-pin, single cathode)Download Datasheet
Transistor (NPN) has marking BC547 on flat sideDownload Datasheet
Transistor (PNP) has marking 2N 3906 on flat sideDownload Datasheet
PhotocellDownload Datasheet
555 timer (8-pin DIP)Download Datasheet
User Manual: https://www.vernier.com/manuals/vcb2-obbk/
Warranty: 5-year limited warranty
