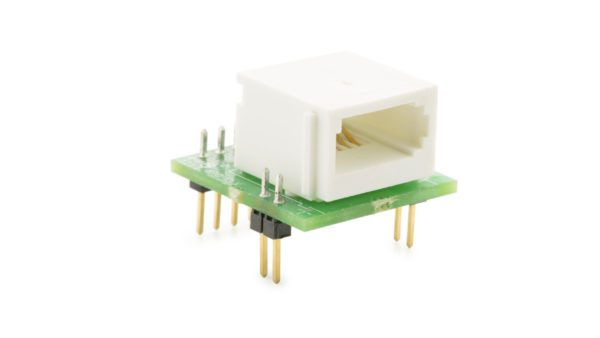

Digital Protoboard Adapter

This connector makes it easy to wire the signal from a Vernier digital sensor into a non-Vernier interface.

SKU: BTD-ELV Category:

$18.00

Subjects

The adapter fits into a standard prototyping board or National Instruments’ ELVIS prototyping board, providing easy access to the sensor lines. Vernier digital sensors include Motion Detector, Rotary Motion Sensor, Photogate, Drop Counter, and Digital Radiation Monitor.

See the pinout specifications for Vernier sensors »

User Manual: https://www.vernier.com/manuals/btd-elv/
Warranty: 5-year limited warranty
FAQ:
